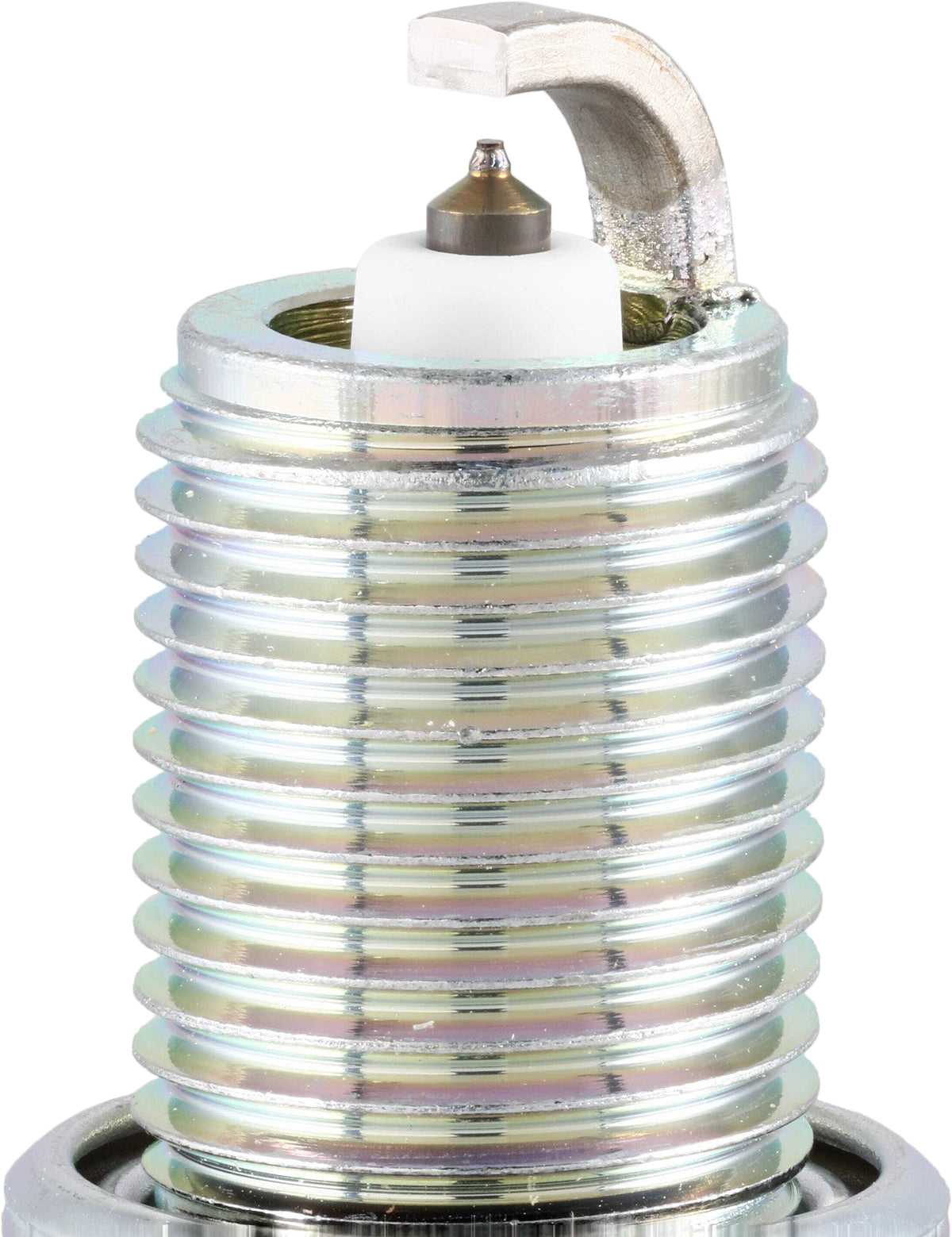

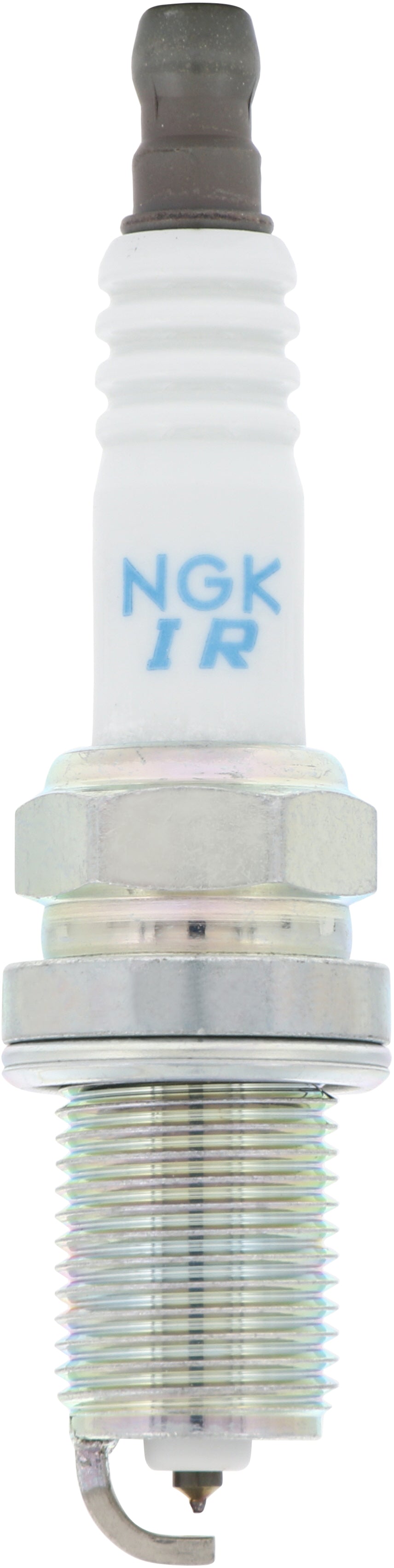

NGK Laser Iridium Spark Plug - IFR5E11
NGK Laser Iridium Spark Plug - IFR5E11
NGK Laser Iridium Spark Plug - IFR5E11
NGK Laser Iridium Spark Plug - IFR5E11

NGK Laser Iridium Spark Plug - IFR5E11

SKU: NGK-IFR5E11
Same Day Shipping

Cutoff Time: 1:00 PM EST

$20.99 CAD
$26.24 CAD -20% $20.99 CAD
Canada Ships from Canada

Enter your VIN, then Add to cart. We’ll manually check fitment before shipping.
Product details
  • Part Name Spark Plug
  • Brand NGK
  • Country of Manufacture Japan
  • Part Number IFR5E11
  • UPC 00087295179949

Specifications

Specifications
Center Electrode Core Material Copper
Center Electrode Design Fine Wire
Center Electrode Tip Material Iridium
Electrical Terminal Type Non-Removable Nut
Grade Type Performance
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Standard
Ground Electrode Tip Material Platinum
Insulator Material Ceramic
Manufacturer Heat Range 5
Metallurgy Iridium Platinum
Resistance 5000 ohm
Resistor Type Yes
Seat Type Flat
Short Style Spark Plug No
Skirt No
Thread Type Standard Metric
Washer Type Crush
Washers Included Yes
Country of Origin Japan
Estimate Delivery Date
Have Questions?
Ask our experts via Live Chat at the bottom right corner of this page.
100% Fitment Guarantee Warranty Why NGK? Characteristics Interchange/OEM Parts
Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Customer Video Reviews

Watch genuine customer videos showing their upgrades and honest results of similar products

Fitment Table

This product is compatible with these vehicles:

Year Make Model Notes Position
2014 Mazda 2
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 3.07" bore
  • 3.09" stroke
  • Gap 0.048"
2013 Mazda 2
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 3.07" bore
  • 3.09" stroke
  • Gap 0.048"
2012 Mazda 2
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 3.07" bore
  • 3.09" stroke
  • Gap 0.048"
2011 Mazda 2
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 3.07" bore
  • 3.09" stroke
  • Gap 0.048"
2008 Hyundai Sonata
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Gap 0.044"
2008 Kia Magentis
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Gap 0.044"
2008 Kia Optima
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Gap 0.044"
2008 Kia Rondo
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Gap 0.044"
2007 Hyundai Sonata
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Gap 0.044"
2007 Kia Magentis
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Gap 0.044"
2007 Kia Optima
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Gap 0.044"
2007 Kia Rondo
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Gap 0.044"
2007 Mercedes-Benz ML500
  • 5.0L
  • V engine
  • 8 cylinders
  • 3.82" bore
  • 3.31" stroke
  • 2 Plugs Per Cylinder Required
  • Gap 0.039in
2006 Hyundai Sonata
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Gap 0.044"
2006 Kia Optima
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine VIN code 3
  • Gap 0.044"
2004 Mitsubishi Diamante
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
2004 Mitsubishi Montero Sport
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
2003 Mitsubishi Diamante
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
2003 Mitsubishi Montero Sport
  • 3.0L
  • V engine
  • 6 cylinders
  • 3.59" bore
  • 2.99" stroke
  • Gap 0.044"
2003 Mitsubishi Montero Sport
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
2002 Mitsubishi Diamante
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
2002 Mitsubishi Montero
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
2002 Mitsubishi Montero Sport
  • 3.0L
  • V engine
  • 6 cylinders
  • 3.59" bore
  • 2.99" stroke
  • Gap 0.044"
2002 Mitsubishi Montero Sport
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
2001 Mitsubishi Diamante
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
2001 Mitsubishi Montero
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
2001 Mitsubishi Montero Sport
  • 3.0L
  • V engine
  • 6 cylinders
  • 3.59" bore
  • 2.99" stroke
  • Gap 0.044"
2001 Mitsubishi Montero Sport
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
2000 Mitsubishi Diamante
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
2000 Mitsubishi Montero
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
2000 Mitsubishi Montero Sport
  • 3.0L
  • V engine
  • 6 cylinders
  • 3.59" bore
  • 2.99" stroke
  • Gap 0.044"
2000 Mitsubishi Montero Sport
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
1999 Mitsubishi Diamante
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
1999 Mitsubishi Montero
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
1999 Mitsubishi Montero Sport
  • 3.0L
  • V engine
  • 6 cylinders
  • 3.59" bore
  • 2.99" stroke
  • Gap 0.044"
1999 Mitsubishi Montero Sport
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
1999 Subaru Legacy
  • 2.5L
  • Horizontally opposed engine
  • 4 cylinders
  • 3.92" bore
  • 3.11" stroke
  • Gap 0.044"
1998 Mitsubishi Diamante
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
1998 Mitsubishi Montero
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
1998 Nissan 240SX
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.78" stroke
  • Gap 0.044"
1998 Subaru Forester
  • 2.5L
  • Horizontally opposed engine
  • 4 cylinders
  • 3.92" bore
  • 3.11" stroke
  • Gap 0.044"
1998 Subaru Impreza
  • 2.5L
  • Horizontally opposed engine
  • 4 cylinders
  • 3.92" bore
  • 3.11" stroke
  • Gap 0.044"
1998 Subaru Legacy
  • 2.5L
  • Horizontally opposed engine
  • 4 cylinders
  • 3.92" bore
  • 3.11" stroke
  • Gap 0.044"
1997 Mitsubishi Diamante
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
1997 Mitsubishi Montero
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
1997 Nissan 240SX
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.78" stroke
  • Gap 0.044"
1997 Subaru Legacy
  • 2.5L
  • Horizontally opposed engine
  • 4 cylinders
  • 3.92" bore
  • 3.11" stroke
  • Gap 0.044"
1996 Mitsubishi Montero
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
1996 Nissan 240SX
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.78" stroke
  • Gap 0.044"
1996 Nissan 300ZX
  • 3.0L
  • V engine
  • 6 cylinders
  • 3.43" bore
  • 3.27" stroke
  • Naturally Aspirated
  • Gap 0.044"
1996 Subaru Legacy
  • 2.5L
  • Horizontally opposed engine
  • 4 cylinders
  • 3.92" bore
  • 3.11" stroke
  • Gap 0.044"
1995 Mitsubishi Montero
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
1995 Nissan 240SX
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.78" stroke
  • Gap 0.044"
1995 Nissan 300ZX
  • 3.0L
  • V engine
  • 6 cylinders
  • 3.43" bore
  • 3.27" stroke
  • Naturally Aspirated
  • Gap 0.044"
1994 Mitsubishi Montero
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.66" bore
  • 3.37" stroke
  • Gap 0.044"
1994 Nissan 240SX
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.78" stroke
  • Gap 0.044"
1994 Nissan 300ZX
  • 3.0L
  • V engine
  • 6 cylinders
  • 3.43" bore
  • 3.27" stroke
  • Naturally Aspirated
  • Gap 0.044"
1994 Nissan Maxima
  • 3.0L
  • V engine
  • 6 cylinders
  • 3.43" bore
  • 3.27" stroke
  • Engine code VE30DE
  • Gap 0.044"
1993 INFINITI Q45
  • 4.5L
  • V engine
  • 8 cylinders
  • 3.66" bore
  • 3.26" stroke
  • Gap 0.044"
1993 Nissan 300ZX
  • 3.0L
  • V engine
  • 6 cylinders
  • 3.43" bore
  • 3.27" stroke
  • Naturally Aspirated
  • Gap 0.044"
1993 Nissan Maxima
  • 3.0L
  • V engine
  • 6 cylinders
  • 3.43" bore
  • 3.27" stroke
  • Engine code VE30DE
  • Gap 0.044"
1992 INFINITI Q45
  • 4.5L
  • V engine
  • 8 cylinders
  • 3.66" bore
  • 3.26" stroke
  • Gap 0.044"
1992 Nissan 300ZX
  • 3.0L
  • V engine
  • 6 cylinders
  • 3.43" bore
  • 3.27" stroke
  • Naturally Aspirated
  • Gap 0.044"
1992 Nissan Maxima
  • 3.0L
  • V engine
  • 6 cylinders
  • 3.43" bore
  • 3.27" stroke
  • Engine code VE30DE
  • Gap 0.044"
1991 INFINITI Q45
  • 4.5L
  • V engine
  • 8 cylinders
  • 3.66" bore
  • 3.26" stroke
  • Gap 0.044"
1991 Nissan 300ZX
  • 3.0L
  • V engine
  • 6 cylinders
  • 3.43" bore
  • 3.27" stroke
  • Naturally Aspirated
  • Gap 0.044"
1990 INFINITI Q45
  • 4.5L
  • V engine
  • 8 cylinders
  • 3.66" bore
  • 3.26" stroke
  • Gap 0.044"
1990 Nissan 300ZX
  • 3.0L
  • V engine
  • 6 cylinders
  • 3.43" bore
  • 3.27" stroke
  • Naturally Aspirated
  • Gap 0.044"
