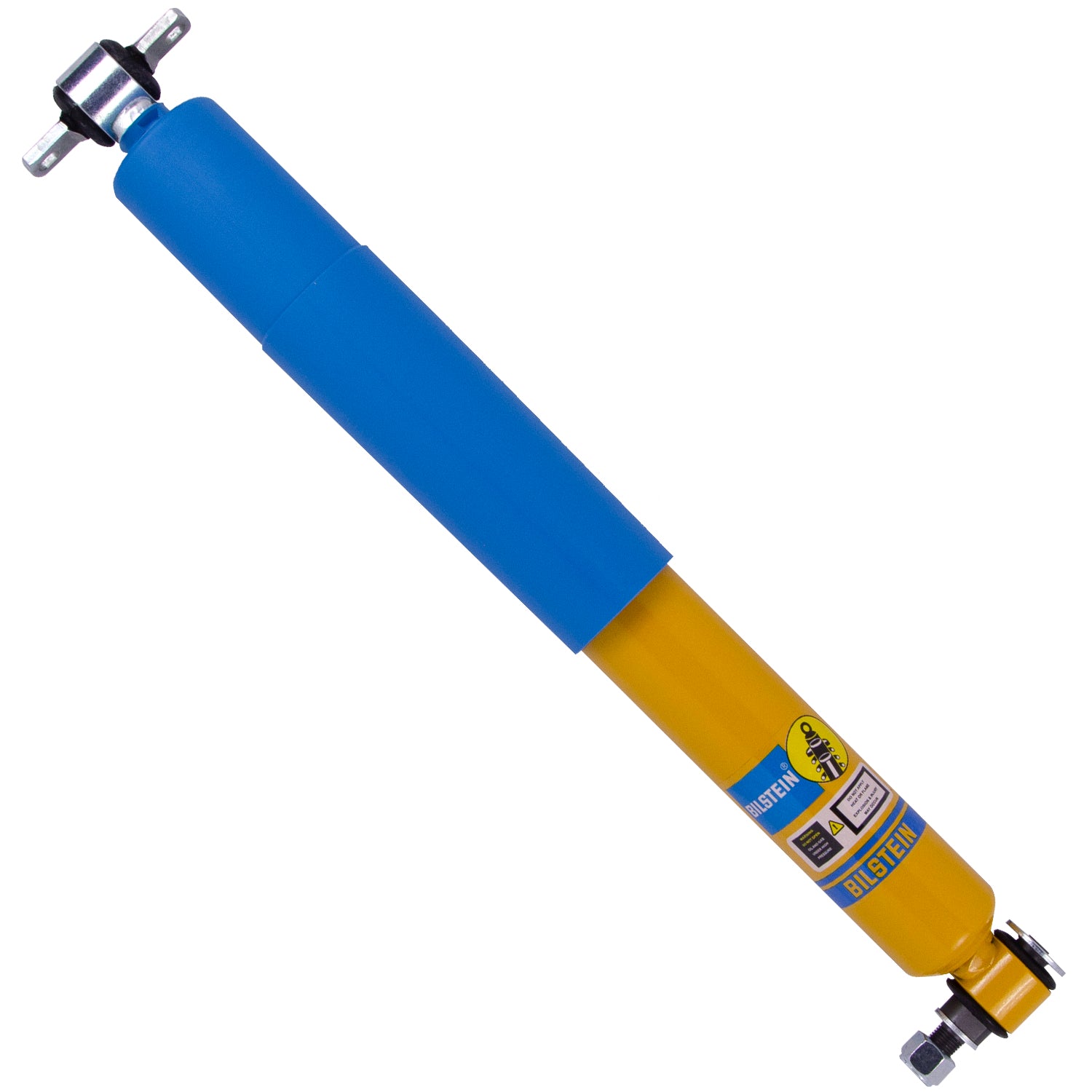

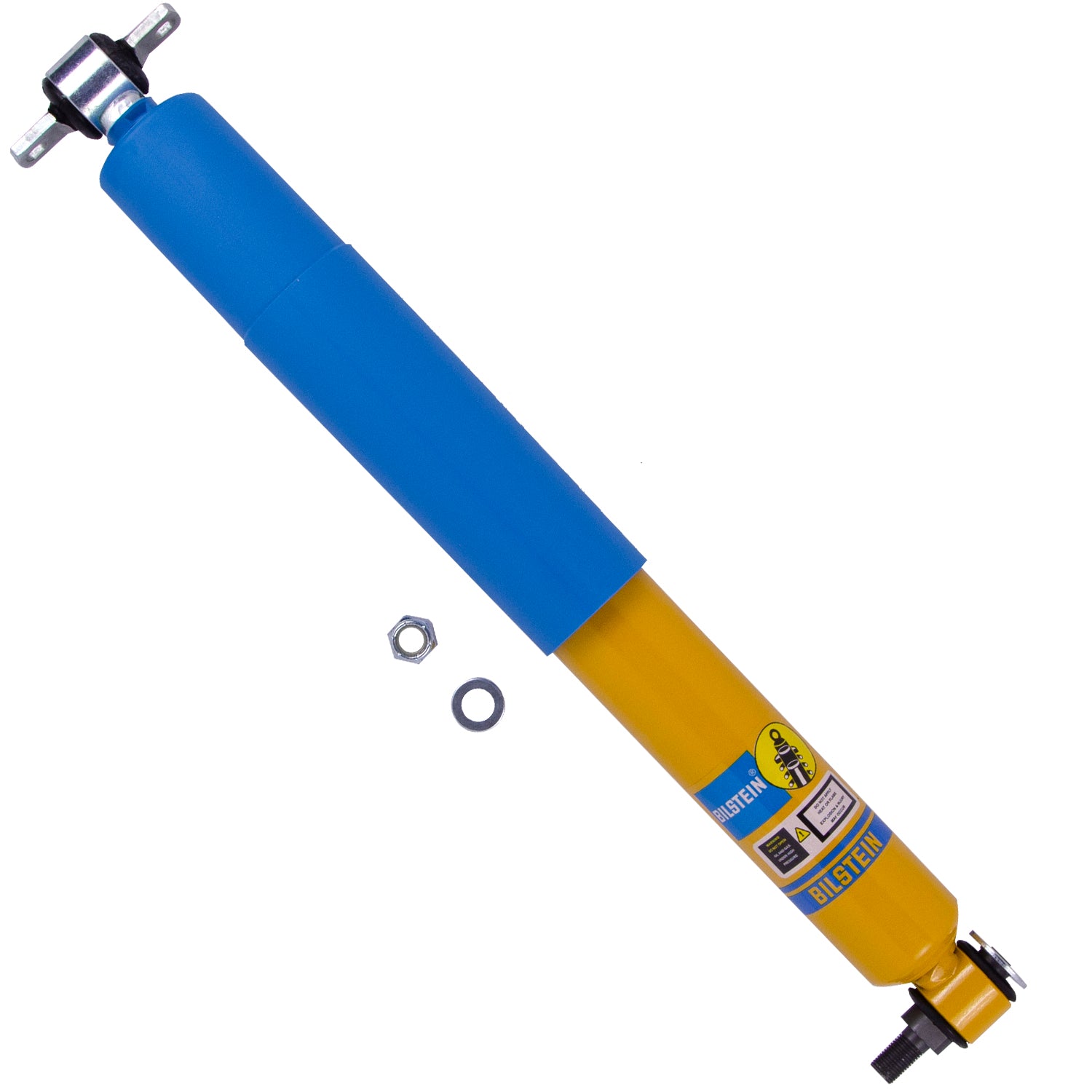

Bilstein 24-291699 AK Series - Suspension Shock Absorber

Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Included warranty:

This product has 2-year limited warranty.

• Warranty starts from the date of delivery.
• Proof of purchase required for all claims.
• Covers manufacturing defects only.
• Does not cover normal wear & tear.
• Does not cover cosmetic damage or rust damage.

To initiate a claim, simply send an email to support@partspioneer.ca. For more information, read our Warranty Policy.

Choose Bilstein because:

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Characteristics include:

• Adjustable Damping:Non-Adjustable
• Body Design:Stock Mount Smooth Body
• Body Material:Steel
• Boot Included:Blue Straight
• Collapsed Length (IN):13.11
• Collapsed Length (MM):333.0
• Compression @0.26m/s:630
• Compression @0.52m/s:1035
• Extended Length (IN):20.28
• Extended Length (MM):515.0
• Finish:Yellow Paint
• Internal Design:Monotube
• Lower Mount Type:Cantilever
• PartType:Shocks / Struts
• Piston Diameter:46mm
• Piston Type:Linear
• Prop 65 (Y/N):Y
• Prop 65 - Short Label:WARNING: Cancer &amp
• Reproductive Harm - www.P65Warnings.ca.gov
• Rebound @0.26m/s:1130
• Rebound @0.52m/s:2135
• Segment:Motorsports
• Series:AK Series
• Shaft Diameter:11mm
• Spring Hardware:N/A
• Spring Seat Included:No
• Stroke/Travel Length (IN):7.17
• Stroke/Travel Length (mm):182.1
• Title:Bilstein Shock Absorbers
• Upper Mount Type:Bar Pin
