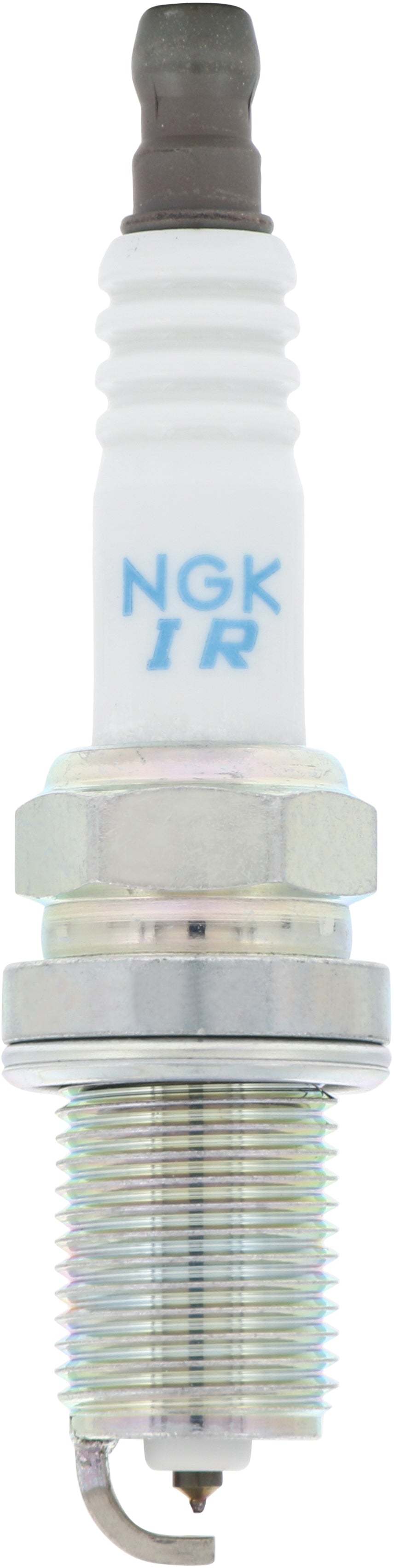

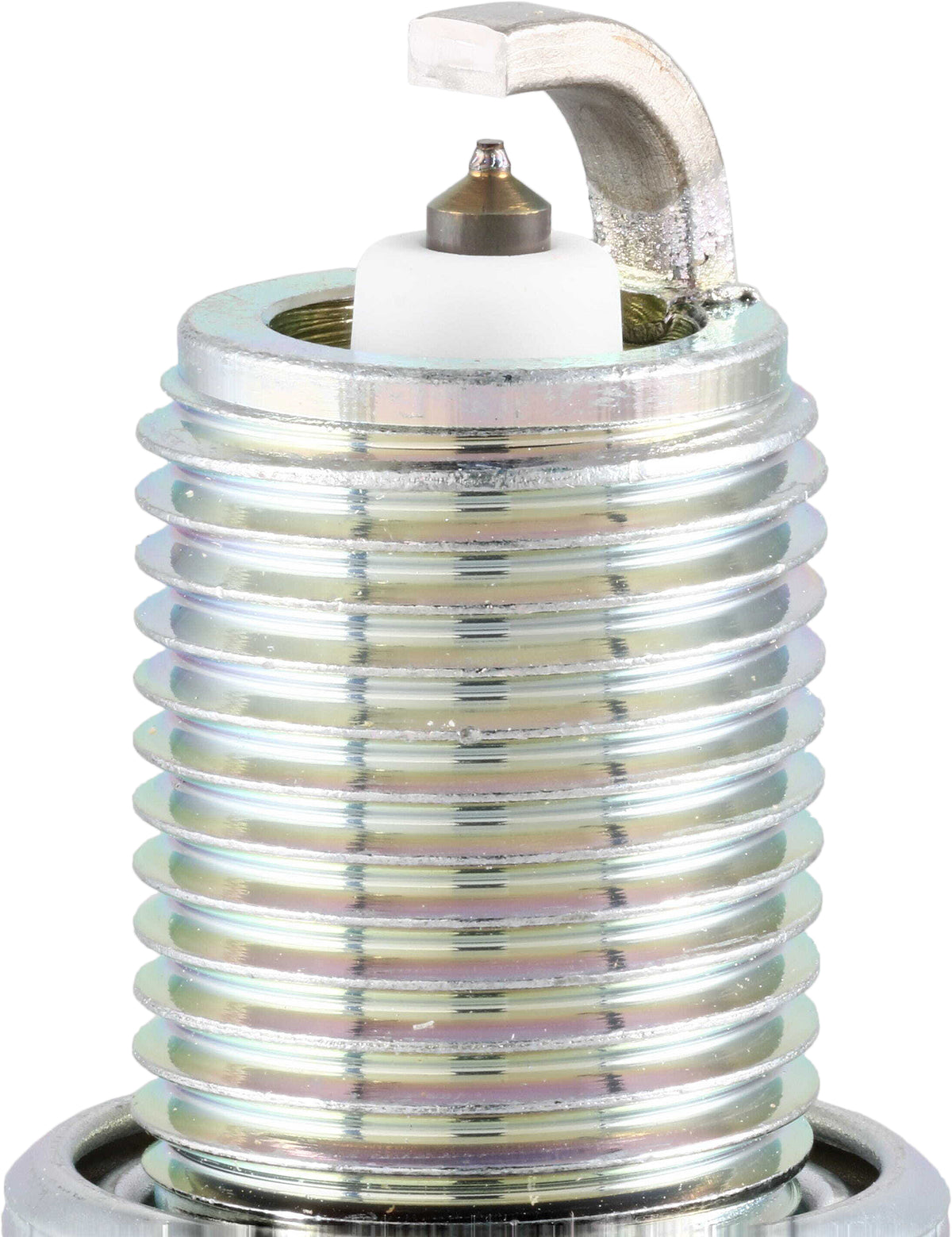

NGK Laser Iridium Spark Plug - IFR5T11
NGK Laser Iridium Spark Plug - IFR5T11
NGK Laser Iridium Spark Plug - IFR5T11
NGK Laser Iridium Spark Plug - IFR5T11

NGK Laser Iridium Spark Plug - IFR5T11

SKU: NGK-IFR5T11
Same Day Shipping

Cutoff Time: 1:00 PM EST

$15.99 CAD
$19.99 CAD -20% $15.99 CAD
Canada Ships from Canada

Enter your VIN, then Add to cart. We’ll manually check fitment before shipping.
Product details
  • Part Name Spark Plug
  • Brand NGK
  • Country of Manufacture Japan
  • Part Number IFR5T11
  • UPC 00087295149966

Specifications

Specifications
Center Electrode Core Material Copper
Center Electrode Design Fine Wire
Center Electrode Tip Material Iridium
Electrical Terminal Type Non-Removable Nut
Grade Type Performance
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Standard
Ground Electrode Tip Material Platinum
Insulator Material Ceramic
Manufacturer Heat Range 5
Metallurgy Iridium Platinum
Resistance 5000 ohm
Resistor Type Yes
Seat Type Flat
Short Style Spark Plug No
Skirt No
Thread Type Standard Metric
Washer Type Crush
Washers Included Yes
Country of Origin Japan
Estimate Delivery Date
Have Questions?
Ask our experts via Live Chat at the bottom right corner of this page.
100% Fitment Guarantee Warranty Why NGK? Characteristics Interchange/OEM Parts
Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Customer Video Reviews

Watch genuine customer videos showing their upgrades and honest results of similar products

Fitment Table

This product is compatible with these vehicles:

Year Make Model Notes Position
2019 Toyota Yaris
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Engine version VVTi
  • Gap 0.044"
2018 Toyota Yaris
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Engine version VVTi
  • Gap 0.044"
2017 Toyota Yaris
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Engine version VVTi
  • Gap 0.044"
2016 Toyota Yaris
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Engine version VVTi
  • Gap 0.044"
2015 Scion xB
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.48" bore
  • 3.78" stroke
  • Gap 0.044"
2015 Toyota Yaris
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2014 Scion xB
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.48" bore
  • 3.78" stroke
  • Gap 0.044"
2014 Toyota Yaris
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2013 Scion xB
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.48" bore
  • 3.78" stroke
  • Gap 0.044"
2013 Toyota Matrix
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.48" bore
  • 3.78" stroke
  • Gap 0.044"
2013 Toyota Yaris
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2012 Scion xB
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.48" bore
  • 3.78" stroke
  • Gap 0.044"
  • From 6/2012
2012 Toyota Corolla
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.48" bore
  • 3.78" stroke
  • Gap 0.044"
  • From 6/2012
2012 Toyota Matrix
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.48" bore
  • 3.78" stroke
  • Gap 0.044"
  • From 6/2012
2012 Toyota Yaris
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2011 Toyota Yaris
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2010 Toyota Yaris
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2009 Toyota Prius
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2009 Toyota Yaris
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2008 Pontiac Vibe
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
2008 Toyota Corolla
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
2008 Toyota Matrix
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
2008 Toyota Prius
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2008 Toyota Yaris
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2007 Pontiac Vibe
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
2007 Toyota Corolla
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
2007 Toyota Matrix
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
2007 Toyota Prius
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2007 Toyota Yaris
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2006 Pontiac Vibe
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Engine code 1ZZ-FE
  • Gap 0.044"
2006 Toyota Corolla
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Engine code 1ZZ-FE
  • Gap 0.044"
2006 Toyota Matrix
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Engine code 1ZZ-FE
  • Gap 0.044"
2006 Toyota Prius
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2006 Toyota Yaris
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2005 Pontiac Vibe
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Engine code 1ZZ-FE
  • Gap 0.044"
2005 Toyota Celica
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Engine code 1ZZ-FE
  • Gap 0.044"
2005 Toyota Corolla
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Engine code 1ZZ-FE
  • Gap 0.044"
2005 Toyota Matrix
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Engine code 1ZZ-FE
  • Gap 0.044"
2005 Toyota MR2 Spyder
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
2005 Toyota Prius
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2004 Pontiac Vibe
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Engine code 1ZZ-FE
  • Gap 0.044"
2004 Toyota Celica
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Engine code 1ZZ-FE
  • Gap 0.044"
2004 Toyota Corolla
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
2004 Toyota Matrix
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Engine code 1ZZ-FE
  • Gap 0.044"
2004 Toyota MR2 Spyder
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
2004 Toyota Prius
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2003 Pontiac Vibe
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Engine code 1ZZ-FE
  • Gap 0.044"
2003 Toyota Celica
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Engine code 1ZZ-FE
  • Gap 0.044"
2003 Toyota Corolla
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
2003 Toyota Matrix
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Engine code 1ZZ-FE
  • Gap 0.044"
2003 Toyota MR2 Spyder
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
2003 Toyota Prius
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2002 Chevrolet Prizm
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
2002 Toyota Celica
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Engine code 1ZZ-FE
  • Gap 0.044"
2002 Toyota Corolla
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
2002 Toyota MR2 Spyder
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
2002 Toyota Prius
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2001 Chevrolet Prizm
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
2001 Toyota Celica
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Engine code 1ZZ-FE
  • Gap 0.044"
2001 Toyota Corolla
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
2001 Toyota MR2 Spyder
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
2001 Toyota Prius
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2000 Chevrolet Prizm
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
2000 Toyota Celica
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Engine code 1ZZ-FE
  • Gap 0.044"
2000 Toyota Corolla
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
2000 Toyota Echo
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.95" bore
  • 3.33" stroke
  • Gap 0.044"
2000 Toyota MR2 Spyder
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.11" bore
  • 3.60" stroke
  • Gap 0.044"
1998 Lexus SC300
  • 3.0L
  • Inline engine
  • 6 cylinders
  • 3.39" bore
  • 3.39" stroke
  • Gap 0.044"
1997 Lexus GS300
  • 3.0L
  • Inline engine
  • 6 cylinders
  • 3.39" bore
  • 3.39" stroke
  • Gap 0.044"
1997 Lexus SC300
  • 3.0L
  • Inline engine
  • 6 cylinders
  • 3.39" bore
  • 3.39" stroke
  • Gap 0.044"
1996 Lexus GS300
  • 3.0L
  • Inline engine
  • 6 cylinders
  • 3.39" bore
  • 3.39" stroke
  • Gap 0.044"
1996 Lexus SC300
  • 3.0L
  • Inline engine
  • 6 cylinders
  • 3.39" bore
  • 3.39" stroke
  • Gap 0.044"
1995 Lexus GS300
  • 3.0L
  • Inline engine
  • 6 cylinders
  • 3.39" bore
  • 3.39" stroke
  • Gap 0.044"
1995 Lexus SC300
  • 3.0L
  • Inline engine
  • 6 cylinders
  • 3.39" bore
  • 3.39" stroke
  • Gap 0.044"
1994 Lexus GS300
  • 3.0L
  • Inline engine
  • 6 cylinders
  • 3.39" bore
  • 3.39" stroke
  • Gap 0.044"
1994 Lexus SC300
  • 3.0L
  • Inline engine
  • 6 cylinders
  • 3.39" bore
  • 3.39" stroke
  • Gap 0.044"
1993 Lexus GS300
  • 3.0L
  • Inline engine
  • 6 cylinders
  • 3.39" bore
  • 3.39" stroke
  • Gap 0.044"

See what other customers say:

Customer Reviews

Overall rating: 4.9 / 5 from 634 reviews.

Customer photo review of Rear Coated Drilled Slotted Disc Brake Rotors And Ceramic Pads Kit For Volkswagen Jetta Beetle Golf SportWagen KDC-100705

Excellent quality and fast shipping! I’m very happy with my purchase from Pioneer Parts. The brake rotors arrived quickly, were well packaged, and the quality looks excellent. The fit and finish are great, and everything matched the description for VW Jetta 2013 TDI,Great service, fast delivery, and good-quality parts. I would definitely order from Pioneer Parts again! Highly recommended! 🚗🔧⭐⭐⭐⭐⭐

Francisco M. 5/5 Verified

Rear Coated Drilled Slotted Disc Brake Rotors And Ceramic Pads Kit For Volkswagen Jetta Beetle Golf SportWagen KDC-100705

Customer photo review of Front Rear Coated Drilled Slotted Disc Brake Rotors And Semi-Metallic Pads Kit For Chevrolet Cruze Volt Bolt EV EUV KDF-100956

Looks and feels great once installed. Sliders were loose but the pads were so tight in them even with lube I had to push/work them in. So that being said they did not slide. I would have had to grind down the tabs, which I didn't want to do. Eventually I made them fit. Wear gloves with these semi metallic pads as the will leave slivers in your skin. A great product so far, no rattles or stickiness....recommended for volts and other like gm vehicles.

Ray G. 4/5

Front Rear Coated Drilled Slotted Disc Brake Rotors And Semi-Metallic Pads Kit For Chevrolet Cruze Volt Bolt EV EUV KDF-100956

Customer photo review of Rear Coated Drilled Slotted Disc Brake Rotors And Ceramic Pads Kit For Jeep Grand Cherokee Dodge Durango WK KDT-100485

Quality product from a quality supplier! I have ordered plenty of parts online in my life. This is the first time ever I had an actual person connect with me and confirm that the parts I was ordering were indeed the correct ones I needed for my vehicle. Was actually very impressed that they didn't want to ship until it was all verified to be correct, top notch! Will definitely be ordering through them for any of my future parts needs!

Coedy M. 5/5 Verified

Rear Coated Drilled Slotted Disc Brake Rotors And Ceramic Pads Kit For Jeep Grand Cherokee Dodge Durango WK KDT-100485
