Home » NGK Standard Spark Plug - BR5ES

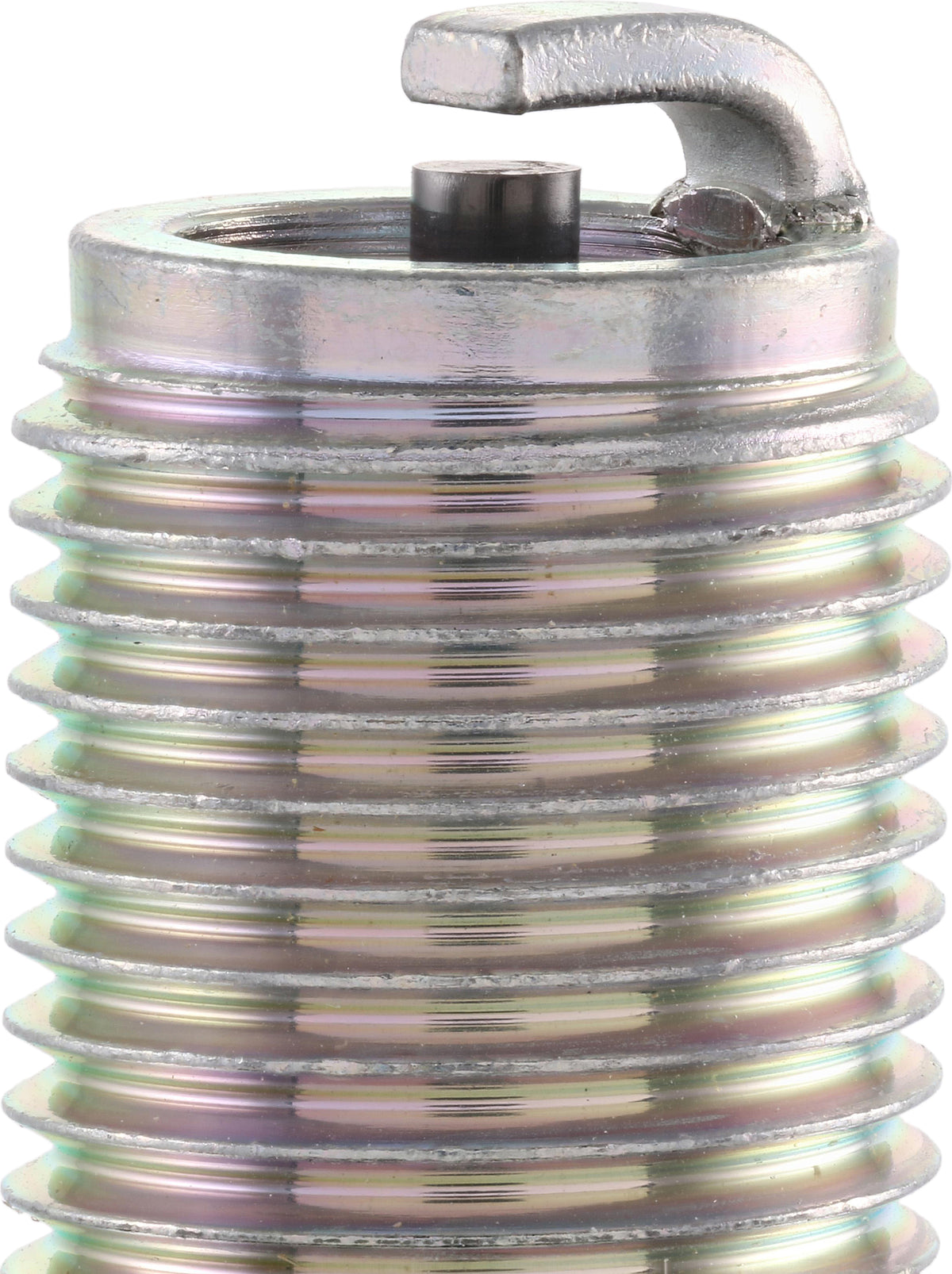

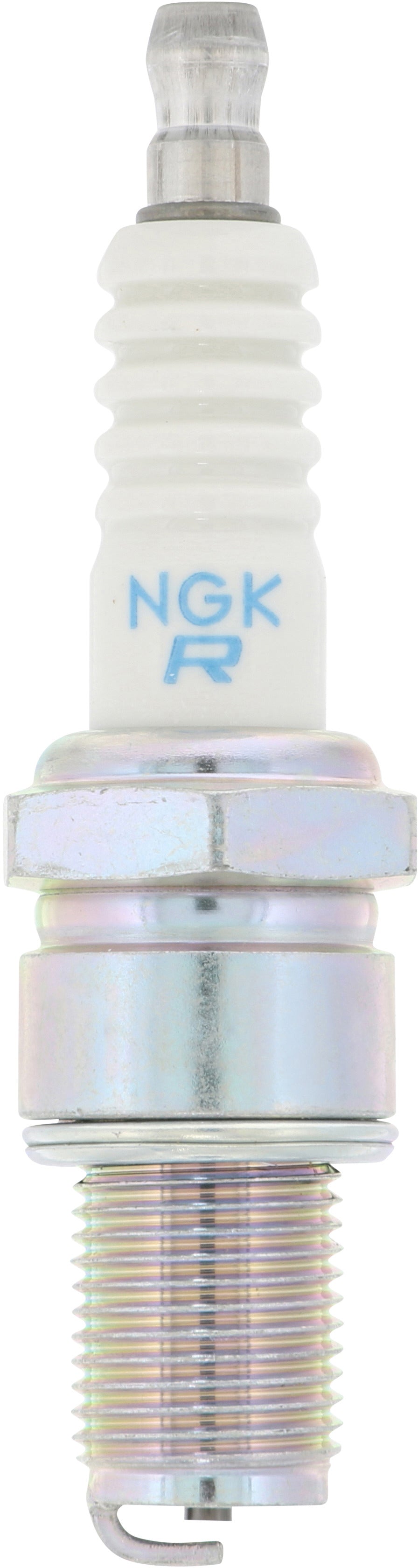

NGK Standard Spark Plug - BR5ES
NGK Standard Spark Plug - BR5ES
NGK Standard Spark Plug - BR5ES
NGK Standard Spark Plug - BR5ES
NGK Standard Spark Plug - BR5ES
NGK Standard Spark Plug - BR5ES

NGK Standard Spark Plug - BR5ES

SKU: NGK-BR5ES
Same Day Shipping

Cutoff Time: 1:00 PM EST

$4.99 CAD
$6.24 CAD -20% $4.99 CAD
Canada Ships from Canada

Enter your VIN, then Add to cart. We’ll manually check fitment before shipping.
Product details
  • Part Name Spark Plug
  • Brand NGK
  • Country of Manufacture Japan
  • Part Number BR5ES
  • UPC 00087295158661

Specifications

Specifications
Center Electrode Core Material Copper
Center Electrode Design Standard
Center Electrode Tip Material Nickel
Electrical Terminal Type Removable Nut
Grade Type Standard Replacement
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Standard
Ground Electrode Tip Material Nickel
Insulator Material Ceramic
Manufacturer Heat Range 5
Metallurgy Copper
Resistance 5000 ohm
Resistor Type Yes
Seat Type Flat
Short Style Spark Plug No
Skirt No
Thread Type Standard Metric
Washer Type Crush
Washers Included Yes
Country of Origin Japan
Estimate Delivery Date
Have Questions?
Ask our experts via Live Chat at the bottom right corner of this page.
100% Fitment Guarantee Warranty Why NGK? Characteristics Interchange/OEM Parts
Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Customer Video Reviews

Watch genuine customer videos showing their upgrades and honest results of similar products

Fitment Table

This product is compatible with these vehicles:

Year Make Model Notes Position
1983 Volkswagen Vanagon
  • 2.0L
  • Horizontally opposed engine
  • 4 cylinders
  • 3.70" bore
  • 2.80" stroke
  • Gap 0.028"
1982 Volkswagen Vanagon
  • 2.0L
  • Horizontally opposed engine
  • 4 cylinders
  • 3.70" bore
  • 2.80" stroke
  • Gap 0.028"
1981 Volkswagen Vanagon
  • 2.0L
  • Horizontally opposed engine
  • 4 cylinders
  • 3.70" bore
  • 2.80" stroke
  • Gap 0.028"
1980 Volkswagen Vanagon
  • 2.0L
  • Horizontally opposed engine
  • 4 cylinders
  • 3.70" bore
  • 2.80" stroke
  • Gap 0.028"
1979 Volkswagen Transporter
  • 2.0L
  • Horizontally opposed engine
  • 4 cylinders
  • 3.70" bore
  • 2.80" stroke
  • Gap 0.024"
1978 Volkswagen Transporter
  • 2.0L
  • Horizontally opposed engine
  • 4 cylinders
  • 3.70" bore
  • 2.80" stroke
  • Gap 0.024"
1977 Volkswagen Transporter
  • 2.0L
  • Horizontally opposed engine
  • 4 cylinders
  • 3.70" bore
  • 2.80" stroke
  • Gap 0.024"
1976 Volkswagen Transporter
  • 2.0L
  • Horizontally opposed engine
  • 4 cylinders
  • 3.70" bore
  • 2.80" stroke
  • Gap 0.024"
1975 Volkswagen Transporter
  • 1.8L
  • Horizontally opposed engine
  • 4 cylinders
  • 3.66" bore
  • 2.60" stroke
  • Gap 0.024"
1974 Volkswagen Campmobile
  • 1.8L
  • Horizontally opposed engine
  • 4 cylinders
  • 3.66" bore
  • 2.60" stroke
  • Gap 0.024"
1974 Volkswagen Campmobile
  • 1.8L
  • Horizontally opposed engine
  • 4 cylinders
  • Gap 0.024"
1974 Volkswagen Transporter
  • 1.8L
  • Horizontally opposed engine
  • 4 cylinders
  • 3.66" bore
  • 2.60" stroke
  • Gap 0.024"
1974 Volkswagen Transporter
  • 1.8L
  • Horizontally opposed engine
  • 4 cylinders
  • Gap 0.024"
1973 Nissan B110
  • 1.2L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 2.76" stroke
  • Gap 0.036"
1973 Volkswagen Campmobile
  • 1.7L
  • Horizontally opposed engine
  • 4 cylinders
  • Gap 0.024"
1973 Volkswagen Transporter
  • 1.7L
  • Horizontally opposed engine
  • 4 cylinders
  • 3.54" bore
  • 2.60" stroke
  • Fuel delivery: FI
  • Gap 0.024"
1973 Volkswagen Transporter
  • 1.7L
  • Horizontally opposed engine
  • 4 cylinders
  • Fuel delivery: FI
  • Gap 0.024"
1972 Nissan B110
  • 1.2L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 2.76" stroke
  • Gap 0.036"
1972 Volkswagen Campmobile
  • 1.7L
  • Horizontally opposed engine
  • 4 cylinders
  • Gap 0.024"
1972 Volkswagen Transporter
  • 1.7L
  • Horizontally opposed engine
  • 4 cylinders
  • 3.54" bore
  • 2.60" stroke
  • Gap 0.024"
1972 Volkswagen Transporter
  • 1.7L
  • Horizontally opposed engine
  • 4 cylinders
  • Gap 0.024"
1971 Nissan B110
  • 1.2L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 2.76" stroke
  • Gap 0.036"
1970 Nissan B110
  • 1.2L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 2.76" stroke
  • Gap 0.036"
1969 Chevrolet Corvette
  • 7.0L
  • V engine
  • 8 cylinders
  • 4.25" bore
  • 3.77" stroke
  • Aluminum Heads
  • Gap 0.035"
1969 Chevrolet Corvette
  • 7.0L
  • V engine
  • 8 cylinders
  • Aluminum Heads
  • Gap 0.035"
1968 Nissan 520 Pickup
  • 1.3L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 3.06" stroke
  • Gap 0.032"
1967 Nissan 411
  • 1.3L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 3.06" stroke
  • Gap 0.036"
1967 Nissan 520 Pickup
  • 1.3L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 3.06" stroke
  • Gap 0.036"
1966 Nissan 411
  • 1.3L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 3.06" stroke
  • Gap 0.036"
1966 Nissan 520 Pickup
  • 1.3L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 3.06" stroke
  • Gap 0.036"
1965 Chevrolet P30 Series
  • 6.7L
  • V engine
  • 8 cylinders
  • 4.31" bore
  • 3.50" stroke
  • Gap 0.035"
1965 Nissan 320 Pickup
  • 1.2L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 2.80" stroke
  • Gap 0.036"
1965 Nissan 520 Pickup
  • 1.3L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 3.06" stroke
  • Gap 0.036"
1964 Chevrolet P30 Series
  • 6.7L
  • V engine
  • 8 cylinders
  • 4.31" bore
  • 3.50" stroke
  • Gap 0.035"
1964 Nissan 320 Pickup
  • 1.2L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 2.80" stroke
  • Gap 0.036"
1963 Nissan 320 Pickup
  • 1.2L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 2.80" stroke
  • Gap 0.036"
1962 Chevrolet P30 Series
  • 6.7L
  • V engine
  • 8 cylinders
  • 4.31" bore
  • 3.50" stroke
  • Gap 0.035"
1962 Nissan 320 Pickup
  • 1.2L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 2.80" stroke
  • Gap 0.036"
1961 Nissan 320 Pickup
  • 1.2L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 2.80" stroke
  • Gap 0.036"
1961 Nissan Bluebird
  • 1.2L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 2.80" stroke
  • Gap 0.036"
1960 Nissan Bluebird
  • 1.2L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 2.80" stroke
  • Gap 0.036"
1959 Nissan Bluebird
  • 1.2L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 2.80" stroke
  • Gap 0.036"
