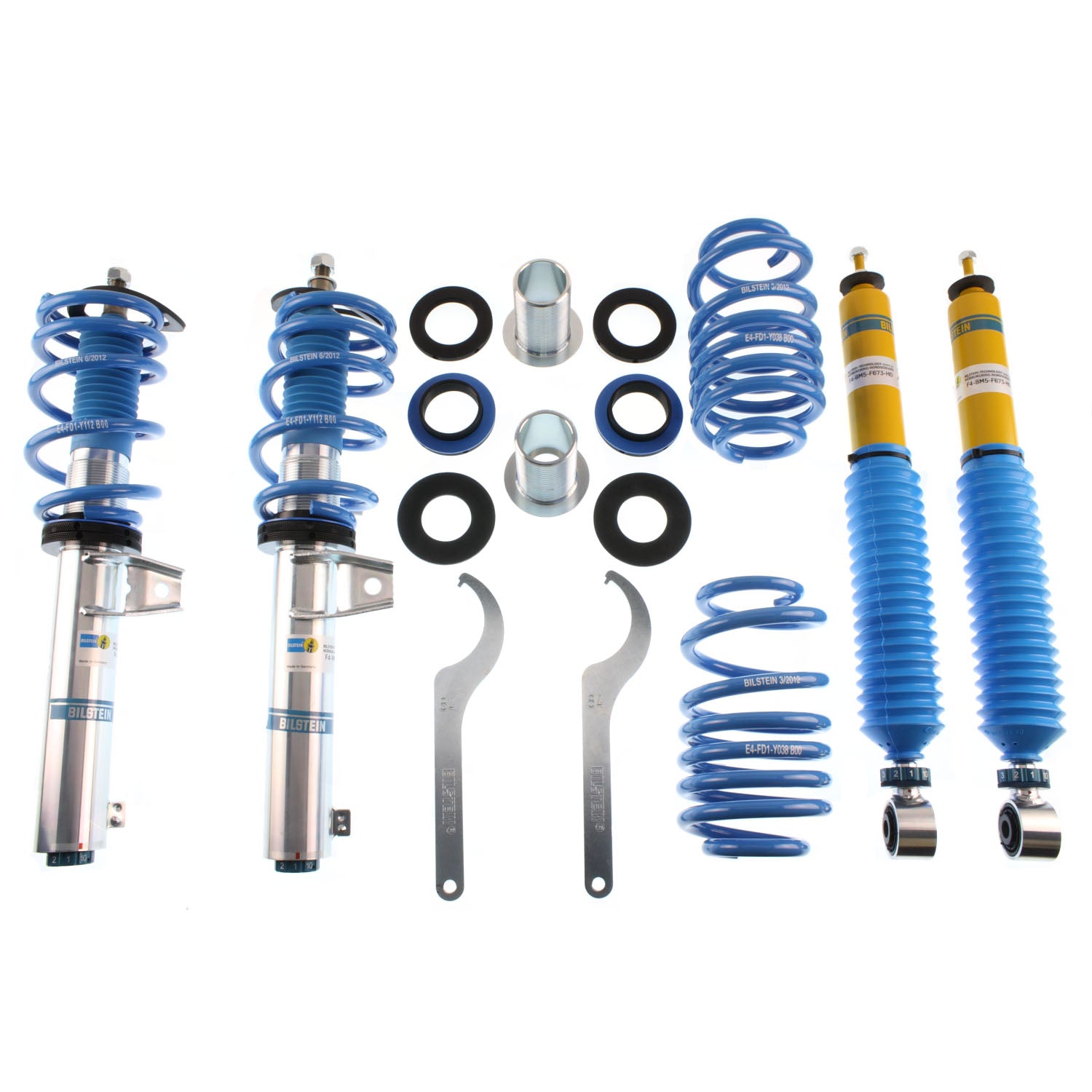

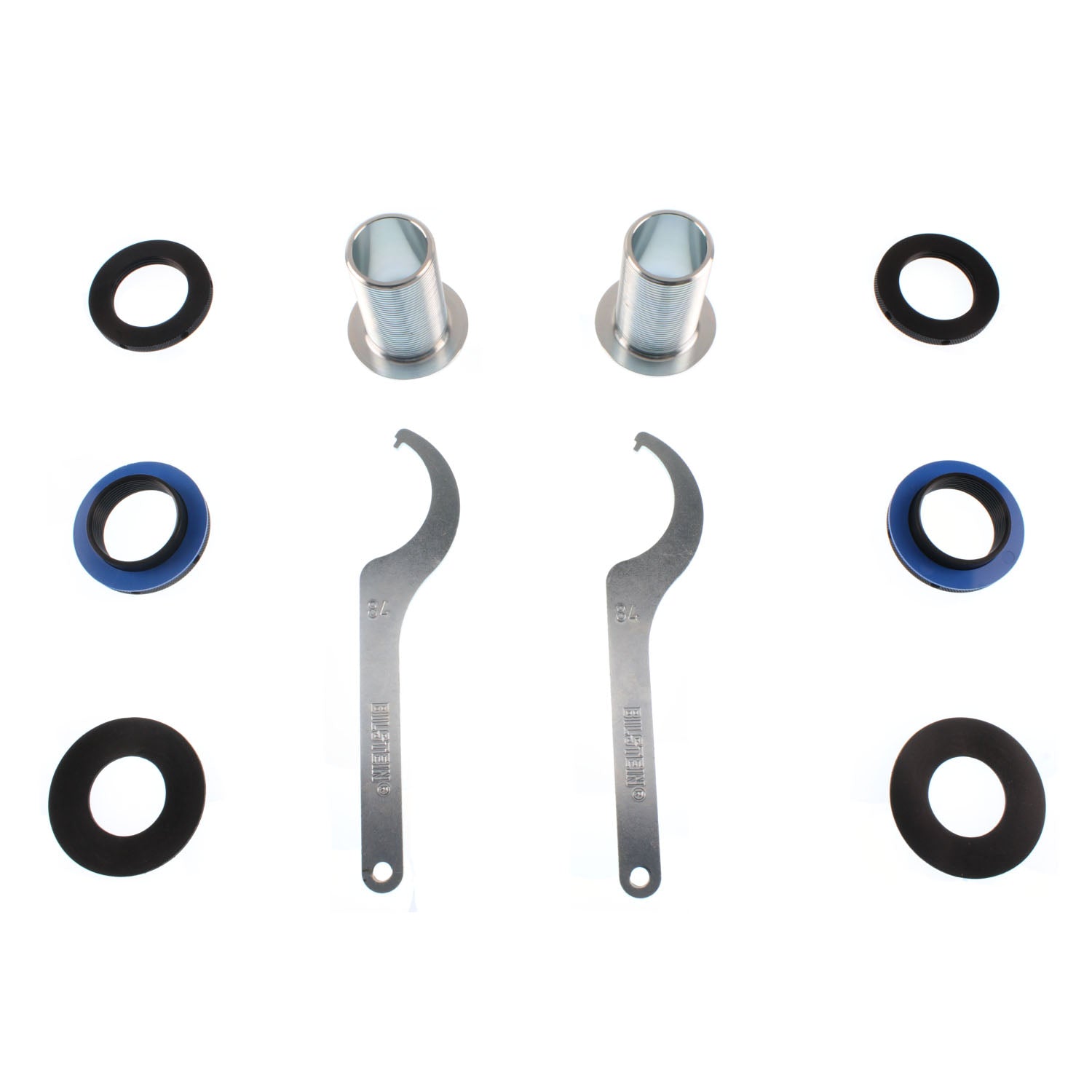

Bilstein 48-158176 B16 (PSS10) - Suspension Kit

Name: Bilstein 48-158176 B16 (PSS10) - Suspension Kit
Brand: Bilstein
SKU: BLS-48-158176
Availability: OutOfStock
Rating: 4.9 (480 reviews)

SKU: BLS-48-158176

Same Day Shipping

Cutoff Time: 1:00 PM EST

$0.00 CAD

VIN (optional)

If provided, we'll verify fitment before your order ships and contact you if the selected part is incompatible. Enter your VIN, then add the product to your cart.

Product details

Part Name Suspension Kit
Brand Bilstein
Country of Manufacture Germany
Part Number 48-158176
UPC 651860646008

Estimate Delivery Date

Postal Code (First 3 Characters)

Have Questions?

Ask our experts via Live Chat at the bottom right corner of this page.

Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Included warranty:

This product has 2-year limited warranty.

Warranty starts from the date of delivery.
Proof of purchase required for all claims.
Covers manufacturing defects only.
Does not cover normal wear & tear.
Does not cover cosmetic damage or rust damage.

To initiate a claim, simply send an email to support@partspioneer.ca. For more information, read our Warranty Policy.

Choose Bilstein because:

Bilstein B16 (PSS10) suspension kits feature ride height adjustability with 10-stage manually adjustable dampers in an OE quality direct fit package. The 10-stage damping system adjusts both rebound and compression with each click to provide the best handling performance in any condition. These kits offer monotube performance dampers with matched springs that are tuned for each specific application. The zinc coated and threaded body design will give you the flexibility to find the perfect ride height setting for your intended use while providing unsurpassed protection against the harshest road elements. B16 (PSS10) suspension kits are made in Germany and feature technology tested on the famed Nürburgring.

Characteristics include:

Finish:Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in):342
Front Main Spring Type:Progressive
Front Tender Spring Rate (lbs/in):N/A
Internal Design:Monotube
PartType:Suspension Kit
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &amp
Reproductive Harm - www.P65Warnings.ca.gov
Rear Main Spring Rate (lbs/in):423
Rear Main Spring Type:Progressive
Rear Tender Spring Rate (lbs/in):N/A
Segment:Tuning
Series:B16 (PSS10)
Title:Bilstein Shock Absorbers

Customer Video Reviews

Watch genuine customer videos showing their upgrades and honest results of similar products

Fitment Table

This product is compatible with these vehicles:

Year	Make	Model	Notes	Position
2019	Volkswagen	Beetle	Final Edition SE Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2019	Volkswagen	Beetle	Final Edition SEL Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2019	Volkswagen	Beetle	S Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2019	Volkswagen	Beetle	SE Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2018	Volkswagen	Beetle	Coast Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2018	Volkswagen	Beetle	S Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2018	Volkswagen	Beetle	SE Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2017	Volkswagen	Beetle	#PinkBeetle Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2017	Volkswagen	Beetle	Classic Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2017	Volkswagen	Beetle	R-Line SEL Rear Lowered Height: 10-30mm up to 880kg Axle Load; Front Lowered Height: 20-30mm up to 1140kg Axle Load	Front and Rear
2017	Volkswagen	Beetle	S Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2017	Volkswagen	Beetle	SE Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2017	Volkswagen	Beetle	SEL Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2016	Volkswagen	Beetle	Denim Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2016	Volkswagen	Beetle	Fleet Edition Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2016	Volkswagen	Beetle	R-Line S Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2016	Volkswagen	Beetle	R-Line SE Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2016	Volkswagen	Beetle	R-Line SEL Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2016	Volkswagen	Beetle	S Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2016	Volkswagen	Beetle	SE Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2016	Volkswagen	Beetle	SEL Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2016	Volkswagen	Beetle	Wolfsburg Edition Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2015	Volkswagen	Beetle	Base Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2015	Volkswagen	Beetle	Classic Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2015	Volkswagen	Beetle	Fleet Edition Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2015	Volkswagen	Beetle	R-Line Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2015	Volkswagen	Beetle	TDI Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2014	Volkswagen	Beetle	Base Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2014	Volkswagen	Beetle	GSR Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2014	Volkswagen	Beetle	R-Line Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2014	Volkswagen	Beetle	TDI Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2014	Volkswagen	Golf	Base Front Lowered Height: 20-40mm up to 1140kg Axle Load; Rear Lowered Height: 20-40mm up to 1040kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter	Front and Rear
2014	Volkswagen	Golf	TDI Front Lowered Height: 20-40mm up to 1140kg Axle Load; Rear Lowered Height: 20-40mm up to 1040kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter	Front and Rear
2014	Volkswagen	GTI	Driver's Edition Front Lowered Height: 20-40mm up to 1140kg Axle Load; Rear Lowered Height: 20-40mm up to 1040kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter	Front and Rear
2014	Volkswagen	GTI	Wolfsburg Edition Front Lowered Height: 20-40mm up to 1140kg Axle Load; Rear Lowered Height: 20-40mm up to 1040kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter	Front and Rear
2013	Volkswagen	Beetle	Base Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2013	Volkswagen	Beetle	R-Line Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2013	Volkswagen	Beetle	TDI Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2013	Volkswagen	Beetle	Turbo Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2013	Volkswagen	Golf	Base Front Lowered Height: 20-40mm up to 1140kg Axle Load; Rear Lowered Height: 20-40mm up to 1040kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter	Front and Rear
2013	Volkswagen	Golf	TDI Front Lowered Height: 20-40mm up to 1140kg Axle Load; Rear Lowered Height: 20-40mm up to 1040kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter	Front and Rear
2013	Volkswagen	Golf R	Base Front Lowered Height: 20-40mm up to 1140kg Axle Load; Rear Lowered Height: 20-40mm up to 1040kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter	Front and Rear
2013	Volkswagen	GTI	Base Front Lowered Height: 20-40mm up to 1140kg Axle Load; Rear Lowered Height: 20-40mm up to 1040kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter	Front and Rear
2012	Volkswagen	Beetle	Turbo Front Lowered Height: 20-30mm up to 1140kg Axle Load; Rear Lowered Height: 10-30mm up to 880kg Axle Load	Front and Rear
2012	Volkswagen	Golf	Base Front Lowered Height: 20-40mm up to 1140kg Axle Load; Rear Lowered Height: 20-40mm up to 1040kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter	Front and Rear
2012	Volkswagen	Golf	TDI Front Lowered Height: 20-40mm up to 1140kg Axle Load; Rear Lowered Height: 20-40mm up to 1040kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter	Front and Rear
2012	Volkswagen	Golf R	Base With 55mm Outside Strut Diameter; Without Electronic Suspension; Rear Lowered Height: 10-30mm up to 1040kg Axle Load; Front Lowered Height: 10-30mm up to 1140kg Axle Load	Front and Rear
2012	Volkswagen	GTI	Base Front Lowered Height: 20-40mm up to 1140kg Axle Load; Rear Lowered Height: 20-40mm up to 1040kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter	Front and Rear
2011	Volkswagen	Golf	Base Front Lowered Height: 20-40mm up to 1140kg Axle Load; Rear Lowered Height: 20-40mm up to 1040kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter	Front and Rear
2011	Volkswagen	Golf	TDI Front Lowered Height: 20-40mm up to 1140kg Axle Load; Rear Lowered Height: 20-40mm up to 1040kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter	Front and Rear
2011	Volkswagen	GTI	Base Front Lowered Height: 20-40mm up to 1140kg Axle Load; Rear Lowered Height: 20-40mm up to 1040kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter	Front and Rear
2010	Volkswagen	Golf	Base Front Lowered Height: 20-40mm up to 1140kg Axle Load; Rear Lowered Height: 20-40mm up to 1040kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter	Front and Rear
2010	Volkswagen	Golf	TDI Front Lowered Height: 20-40mm up to 1140kg Axle Load; Rear Lowered Height: 20-40mm up to 1040kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter	Front and Rear
2010	Volkswagen	GTI	Base Front Lowered Height: 20-40mm up to 1140kg Axle Load; Rear Lowered Height: 20-40mm up to 1040kg Axle Load; Without Electronic Suspension; With 55mm Outside Strut Diameter	Front and Rear
