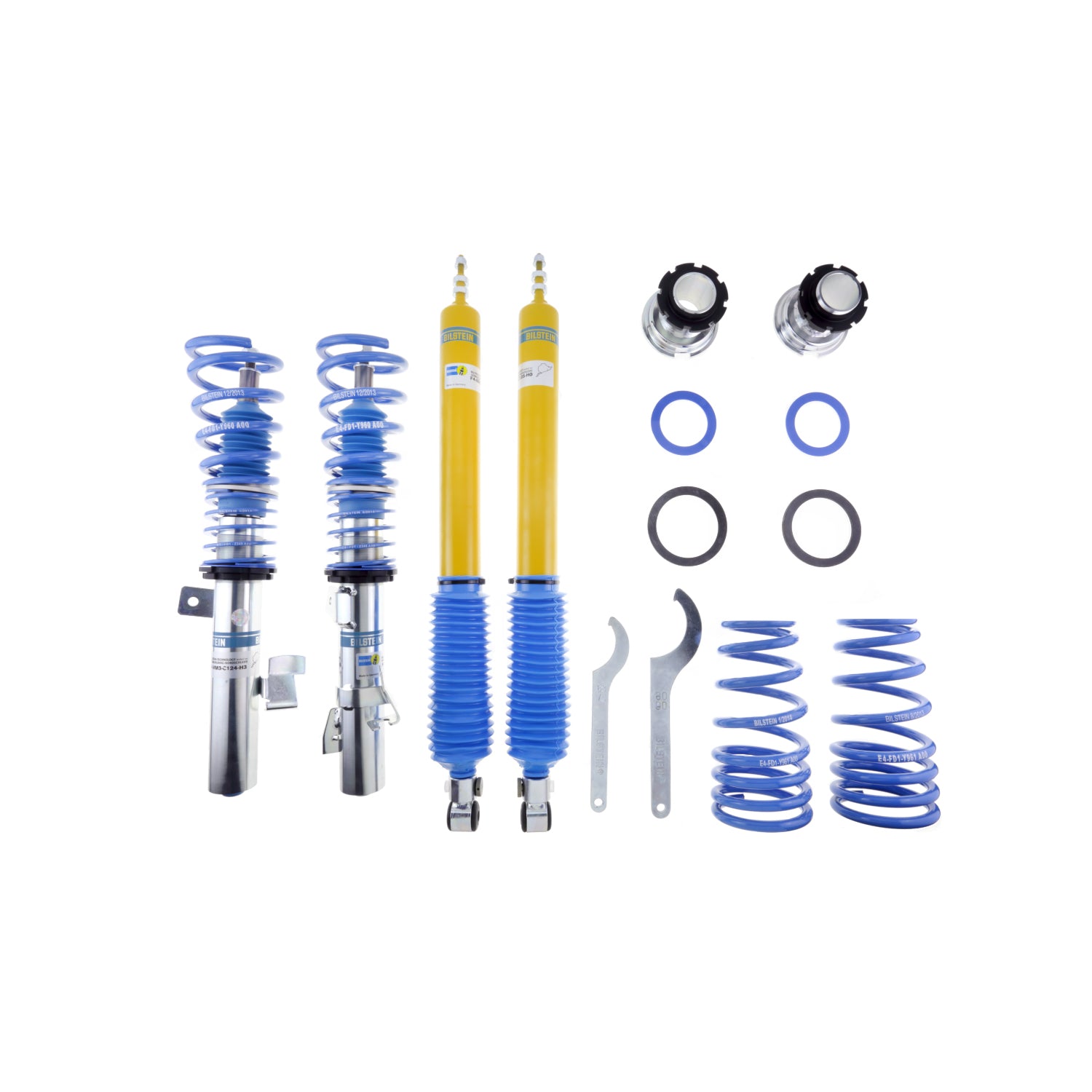

Bilstein 48-121262 B16 (PSS9) - Suspension Kit

Name: Bilstein 48-121262 B16 (PSS9) - Suspension Kit
Brand: Bilstein
SKU: BLS-48-121262
Availability: OutOfStock
Rating: 4.9 (543 reviews)

SKU: BLS-48-121262

Same Day Shipping

Cutoff Time: 1:00 PM EST

$0.00 CAD

VIN (optional)

If provided, we'll verify fitment before your order ships and contact you if the selected part is incompatible. Enter your VIN, then add the product to your cart.

Product details

Part Name Suspension Kit
Brand Bilstein
Country of Manufacture Germany
Part Number 48-121262
UPC 651860613512

Estimate Delivery Date

Postal Code (First 3 Characters)

Have Questions?

Ask our experts via Live Chat at the bottom right corner of this page.

Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Included warranty:

This product has 2-year limited warranty.

Warranty starts from the date of delivery.
Proof of purchase required for all claims.
Covers manufacturing defects only.
Does not cover normal wear & tear.
Does not cover cosmetic damage or rust damage.

To initiate a claim, simply send an email to support@partspioneer.ca. For more information, read our Warranty Policy.

Choose Bilstein because:

Bilstein B16 (PSS9) suspension kits feature ride height adjustability with 9-stage manually adjustable dampers in an OE quality direct fit package. The 9-stage damping system adjusts both rebound and compression with each click to provide the best handling performance in any condition. These kits offer monotube performance dampers with matched springs that are tuned for each specific application. The zinc coated and threaded body design will give you the flexibility to find the perfect ride height setting for your intended use while providing unsurpassed protection against the harshest road elements. B16 (PSS9) suspension kits are made in Germany and feature technology tested on the famed Nürburgring.

Characteristics include:

Finish:Dampers: Zinc Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in):377
Front Main Spring Type:Linear
Front Tender Spring Rate (lbs/in):114
Internal Design:Monotube
PartType:Suspension Kit
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &amp
Reproductive Harm - www.P65Warnings.ca.gov
Rear Main Spring Rate (lbs/in):378
Rear Main Spring Type:Progressive
Rear Tender Spring Rate (lbs/in):N/A
Segment:Tuning
Series:B16 (PSS9)
Title:Bilstein Shock Absorbers

Customer Video Reviews

Watch genuine customer videos showing their upgrades and honest results of similar products

Fitment Table

This product is compatible with these vehicles:

Year	Make	Model	Notes	Position
2013	Mazda	3	i Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2013	Mazda	3	Mazdaspeed Front Lowered Height: 10-25mm up to 1100kg Axle Load; Rear Lowered Height: 5-25mm up to 1090kg Axle Load	Front and Rear
2013	Mazda	3	S Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2013	Volvo	C30	T5 R-Design Front Lowered Height: 15-30mm up to 1100kg Axle Load; Rear Lowered Height: 10-20mm up to 1090kg Axle Load	Front and Rear
2013	Volvo	C30	T5 Front Lowered Height: 15-30mm up to 1100kg Axle Load; Rear Lowered Height: 10-20mm up to 1090kg Axle Load	Front and Rear
2012	Mazda	3	i Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2012	Mazda	3	Mazdaspeed Front Lowered Height: 10-25mm up to 1100kg Axle Load; Rear Lowered Height: 5-25mm up to 1090kg Axle Load	Front and Rear
2012	Mazda	3	S Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2012	Volvo	C30	T5 R-Design Front Lowered Height: 15-30mm up to 1100kg Axle Load; Rear Lowered Height: 10-20mm up to 1090kg Axle Load	Front and Rear
2012	Volvo	C30	T5 Front Lowered Height: 15-30mm up to 1100kg Axle Load; Rear Lowered Height: 10-20mm up to 1090kg Axle Load	Front and Rear
2011	Mazda	3	i Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2011	Mazda	3	Mazdaspeed Front Lowered Height: 10-25mm up to 1100kg Axle Load; Rear Lowered Height: 5-25mm up to 1090kg Axle Load	Front and Rear
2011	Mazda	3	S Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2011	Volvo	C30	T5 Front Lowered Height: 15-30mm up to 1100kg Axle Load; Rear Lowered Height: 10-20mm up to 1090kg Axle Load	Front and Rear
2011	Volvo	S40	T5 R-Design Front Lowered Height: 20-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2011	Volvo	S40	T5 Front Lowered Height: 35-50mm up to 1100kg Axle Load; Rear Lowered Height: 35-50mm up to 1090kg Axle Load	Front and Rear
2011	Volvo	V50	T5 R-Design Front Lowered Height: 20-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2011	Volvo	V50	T5 Front Lowered Height: 20-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2010	Mazda	3	i Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2010	Mazda	3	Mazdaspeed Front Lowered Height: 10-25mm up to 1100kg Axle Load; Rear Lowered Height: 5-25mm up to 1090kg Axle Load	Front and Rear
2010	Mazda	3	S Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2010	Volvo	C30	T5 Front Lowered Height: 15-30mm up to 1100kg Axle Load; Rear Lowered Height: 10-20mm up to 1090kg Axle Load	Front and Rear
2010	Volvo	S40	2.4i Front Lowered Height: 35-50mm up to 1100kg Axle Load; Rear Lowered Height: 35-50mm up to 1090kg Axle Load	Front and Rear
2010	Volvo	V50	2.4i Front Lowered Height: 20-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2009	Mazda	3	i Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2009	Mazda	3	Mazdaspeed Front Lowered Height: 10-25mm up to 1100kg Axle Load; Rear Lowered Height: 5-25mm up to 1090kg Axle Load	Front and Rear
2009	Mazda	3	S Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2009	Volvo	C30	T5 Front Lowered Height: 15-30mm up to 1100kg Axle Load; Rear Lowered Height: 10-20mm up to 1090kg Axle Load	Front and Rear
2009	Volvo	S40	2.4i Front Lowered Height: 35-50mm up to 1100kg Axle Load; Rear Lowered Height: 35-50mm up to 1090kg Axle Load	Front and Rear
2009	Volvo	S40	T5 Front Lowered Height: 35-50mm up to 1100kg Axle Load; Rear Lowered Height: 35-50mm up to 1090kg Axle Load FWD	Front and Rear
2009	Volvo	V50	2.4i Front Lowered Height: 20-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2008	Mazda	3	i Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2008	Mazda	3	Mazdaspeed Front Lowered Height: 10-25mm up to 1100kg Axle Load; Rear Lowered Height: 5-25mm up to 1090kg Axle Load	Front and Rear
2008	Mazda	3	S Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2008	Volvo	C30	T5 Front Lowered Height: 15-30mm up to 1100kg Axle Load; Rear Lowered Height: 10-20mm up to 1090kg Axle Load	Front and Rear
2008	Volvo	S40	2.4i Front Lowered Height: 35-50mm up to 1100kg Axle Load; Rear Lowered Height: 35-50mm up to 1090kg Axle Load	Front and Rear
2008	Volvo	S40	T5 Front Lowered Height: 35-50mm up to 1100kg Axle Load; Rear Lowered Height: 35-50mm up to 1090kg Axle Load FWD	Front and Rear
2008	Volvo	V50	2.4i Front Lowered Height: 20-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2008	Volvo	V50	T5 Front Lowered Height: 20-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load FWD	Front and Rear
2007	Mazda	3	i Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2007	Mazda	3	Mazdaspeed Front Lowered Height: 10-25mm up to 1100kg Axle Load; Rear Lowered Height: 5-25mm up to 1090kg Axle Load	Front and Rear
2007	Mazda	3	S Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2007	Volvo	S40	2.4i Front Lowered Height: 35-50mm up to 1100kg Axle Load; Rear Lowered Height: 35-50mm up to 1090kg Axle Load	Front and Rear
2007	Volvo	S40	T5 Front Lowered Height: 35-50mm up to 1100kg Axle Load; Rear Lowered Height: 35-50mm up to 1090kg Axle Load FWD	Front and Rear
2007	Volvo	V50	2.4i Front Lowered Height: 20-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2007	Volvo	V50	T5 Front Lowered Height: 20-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load FWD	Front and Rear
2006	Mazda	3	i Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2006	Mazda	3	S Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2006	Volvo	S40	2.4i Front Lowered Height: 35-50mm up to 1100kg Axle Load; Rear Lowered Height: 35-50mm up to 1090kg Axle Load	Front and Rear
2006	Volvo	S40	T5 Front Lowered Height: 35-50mm up to 1100kg Axle Load; Rear Lowered Height: 35-50mm up to 1090kg Axle Load FWD	Front and Rear
2006	Volvo	V50	2.4i Front Lowered Height: 20-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2006	Volvo	V50	T5 Front Lowered Height: 20-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load FWD	Front and Rear
2005	Mazda	3	i Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2005	Mazda	3	S Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2005	Mazda	3	SP23 Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2005	Volvo	S40	i Front Lowered Height: 35-50mm up to 1100kg Axle Load; Rear Lowered Height: 35-50mm up to 1090kg Axle Load	Front and Rear
2005	Volvo	S40	T5 Front Lowered Height: 35-50mm up to 1100kg Axle Load; Rear Lowered Height: 35-50mm up to 1090kg Axle Load FWD	Front and Rear
2005	Volvo	V50	i Front Lowered Height: 20-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2005	Volvo	V50	T5 Front Lowered Height: 20-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load FWD	Front and Rear
2004	Mazda	3	i Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2004	Mazda	3	S Front Lowered Height: 25-40mm up to 1100kg Axle Load; Rear Lowered Height: 20-40mm up to 1090kg Axle Load	Front and Rear
2004	Volvo	S40	i Front Lowered Height: 35-50mm up to 1100kg Axle Load; Rear Lowered Height: 35-50mm up to 1090kg Axle Load	Front and Rear
2004	Volvo	S40	T5 Front Lowered Height: 35-50mm up to 1100kg Axle Load; Rear Lowered Height: 35-50mm up to 1090kg Axle Load	Front and Rear
