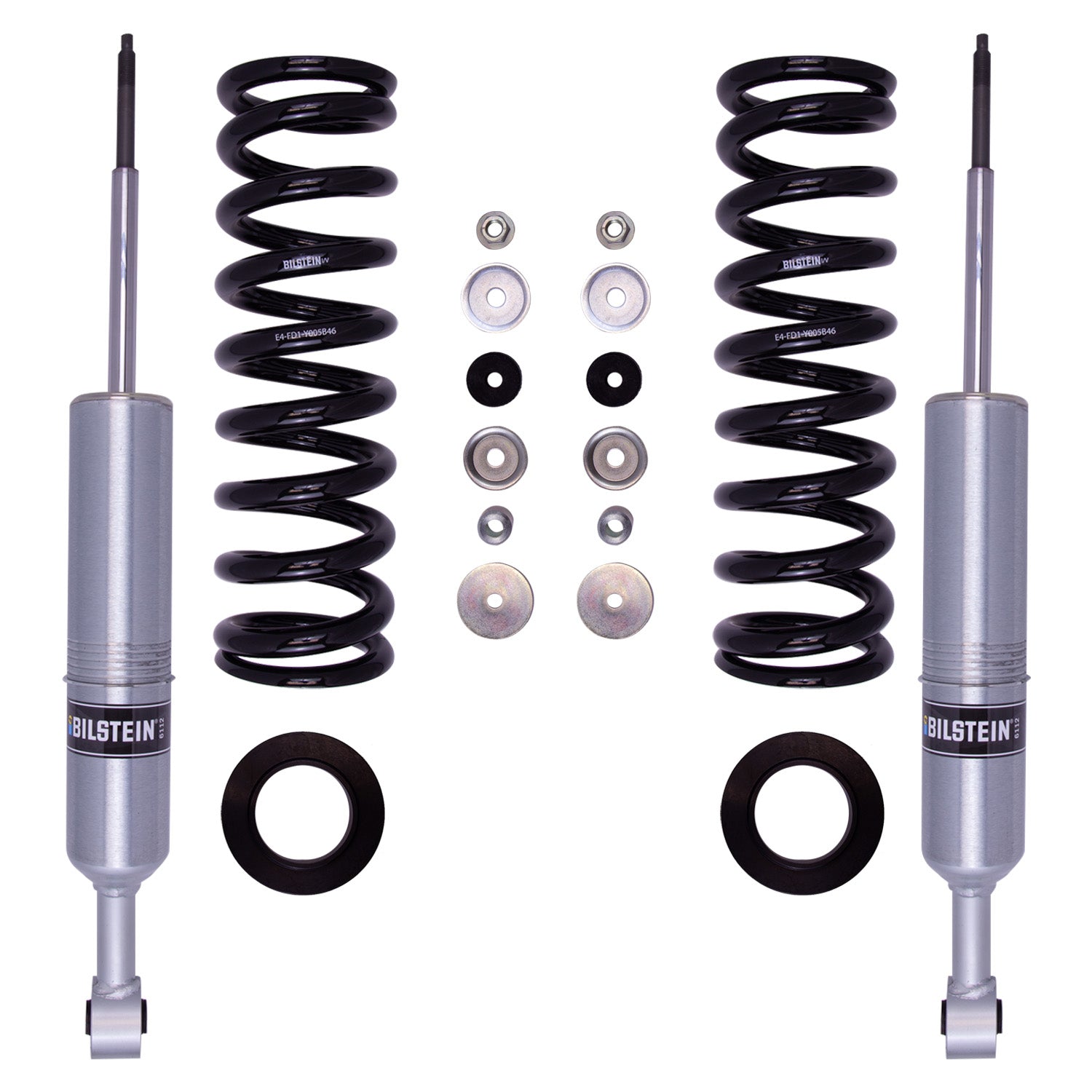

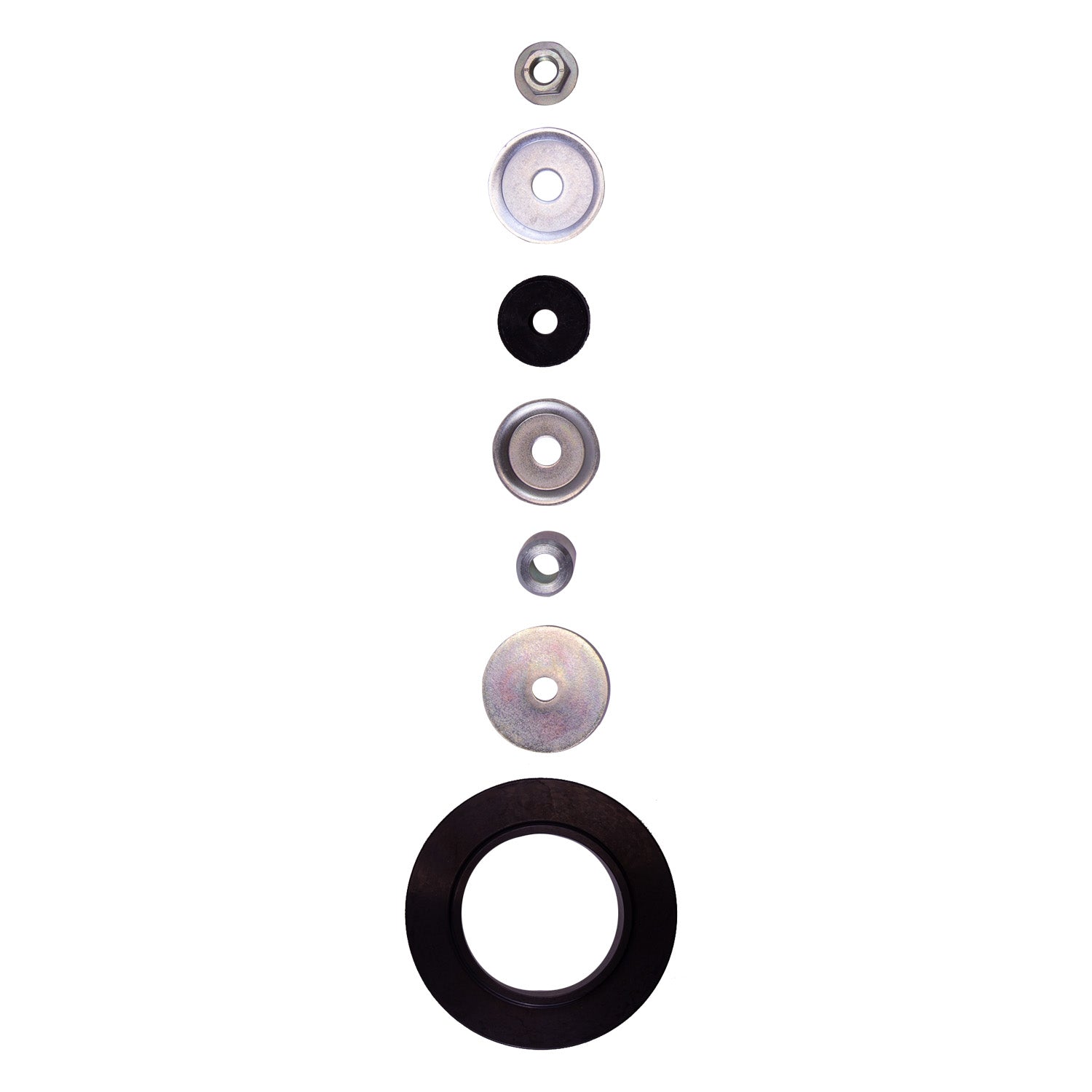

Bilstein B8 6112 leveling kits are designed to provide more ground clearance allow for larger tires and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
Characteristics include:
Body Design:Snap Ring Grooved Body (Coilover)
Boot Included:No
Collapsed Length (IN):16.82
Collapsed Length (mm):427.3
Extended Length (IN):21.61
Extended Length (mm):549.0
Finish:Dampers: Zinc Plated/Springs: Black
Front Main Spring Rate (lbs/in):700
Internal Design:Monotube
PartType:Suspension Kit
Piston Diameter:60mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:No
Segment:Light Truck
Series:B8 6112
Shaft Diameter:18mm
Spring Seat Included:Yes
Stroke/Travel Length (IN):4.79
Stroke/Travel Length (mm):121.7
Title:Bilstein Shock Absorbers
Some of the interchangeable part numbers are:
Customer Video Reviews
Watch genuine customer videos showing their upgrades and honest results of similar products
Fitment Table
This product is compatible with these vehicles:
Year
Make
Model
Notes
Position
2009
Lexus
GX470
Base
Provides 1.7-3.2" Front Lift; For 150-200 lbs additional front weight; Requires use of 2X Toyota Upper Shock Mount Assy 48609-60100
Front
2009
Toyota
FJ Cruiser
Base
Provides 2.1-3.1" Front Lift; For 150-200 lbs additional front weight
4WD
Front
2008
Lexus
GX470
Base
Provides 1.7-3.2" Front Lift; For 150-200 lbs additional front weight; Requires use of 2X Toyota Upper Shock Mount Assy 48609-60100
Front
2008
Toyota
FJ Cruiser
Base
Provides 2.1-3.1" Front Lift; For 150-200 lbs additional front weight
4WD
Front
2008
Toyota
FJ Cruiser
Trail Teams Special Edition
Provides 2.1-3.1" Front Lift; For 150-200 lbs additional front weight
Front
2007
Lexus
GX470
Base
Provides 1.7-3.2" Front Lift; For 150-200 lbs additional front weight; Requires use of 2X Toyota Upper Shock Mount Assy 48609-60100
Front
2007
Toyota
FJ Cruiser
Base
Provides 2.1-3.1" Front Lift; For 150-200 lbs additional front weight
4WD
Front
2007
Toyota
FJ Cruiser
TRD Special Edition
Provides 2.1-3.1" Front Lift; For 150-200 lbs additional front weight
Front
2006
Lexus
GX470
Base
Provides 1.7-3.2" Front Lift; For 150-200 lbs additional front weight; Requires use of 2X Toyota Upper Shock Mount Assy 48609-60100
Front
2005
Lexus
GX470
Base
Provides 1.7-3.2" Front Lift; For 150-200 lbs additional front weight; Requires use of 2X Toyota Upper Shock Mount Assy 48609-60100
Front
2004
Lexus
GX470
Base
Provides 1.7-3.2" Front Lift; For 150-200 lbs additional front weight; Requires use of 2X Toyota Upper Shock Mount Assy 48609-60100
Front
2003
Lexus
GX470
Base
Provides 1.7-3.2" Front Lift; For 150-200 lbs additional front weight; Requires use of 2X Toyota Upper Shock Mount Assy 48609-60100
Front
