Bilstein 47-310896 B8 6112 - Suspension Kit

Bilstein 47-310896 B8 6112 - Suspension Kit

Name: Bilstein 47-310896 B8 6112 - Suspension Kit
Brand: Bilstein
SKU: BLS-47-310896
Price: 1486.83 CAD
Availability: InStock
Rating: 4.9 (362 reviews)

SKU: BLS-47-310896

Same Day Shipping

Cutoff Time: 1:00 PM EST

$1,486.83 CAD

~~$2,103.65 CAD~~ -29% $1,486.83 CAD

In stock

Free Shipping!

Product details

Part Name Suspension Kit
Position Front
Brand Bilstein
Country of Manufacture United States
Part Number 47-310896
UPC 651860868738

Estimate Delivery Date

Postal Code (First 3 Characters)

Have Questions?

Ask our experts via Live Chat at the bottom right corner of this page.

Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Included warranty:

This product has life-time limited warranty.

Warranty starts from the date of delivery.
Proof of purchase required for all claims.
Covers manufacturing defects only.
Does not cover normal wear & tear.
Does not cover cosmetic damage or rust damage.

To initiate a claim, simply send an email to support@partspioneer.ca. For more information, read our Warranty Policy.

Choose Bilstein because:

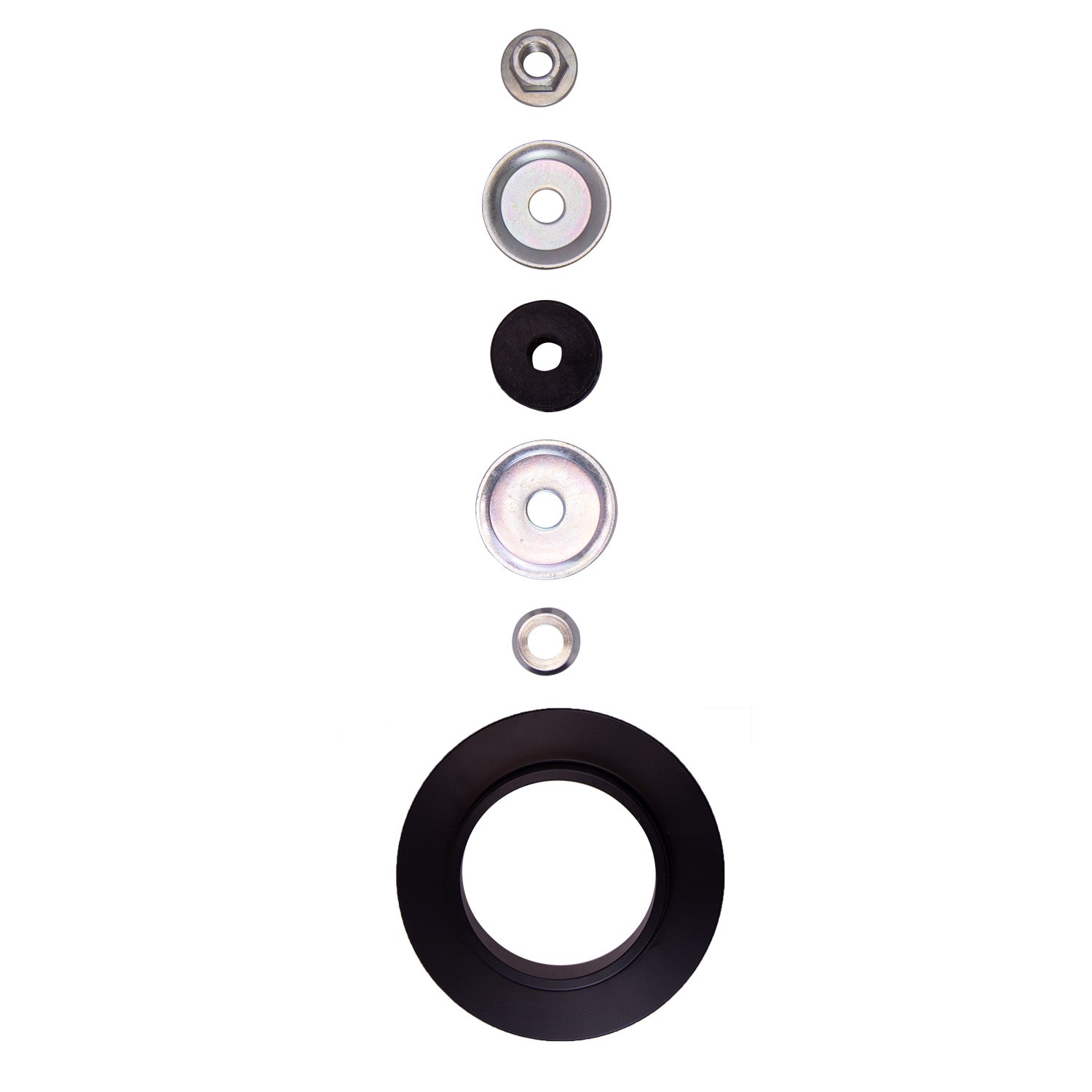

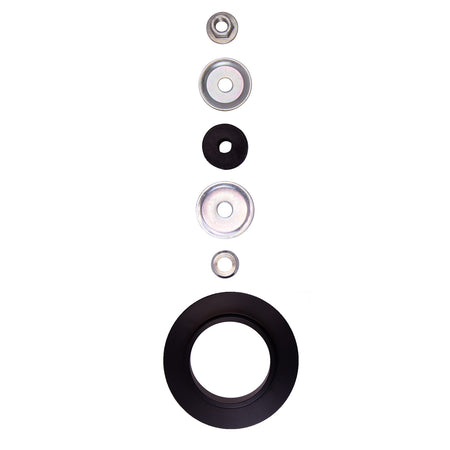

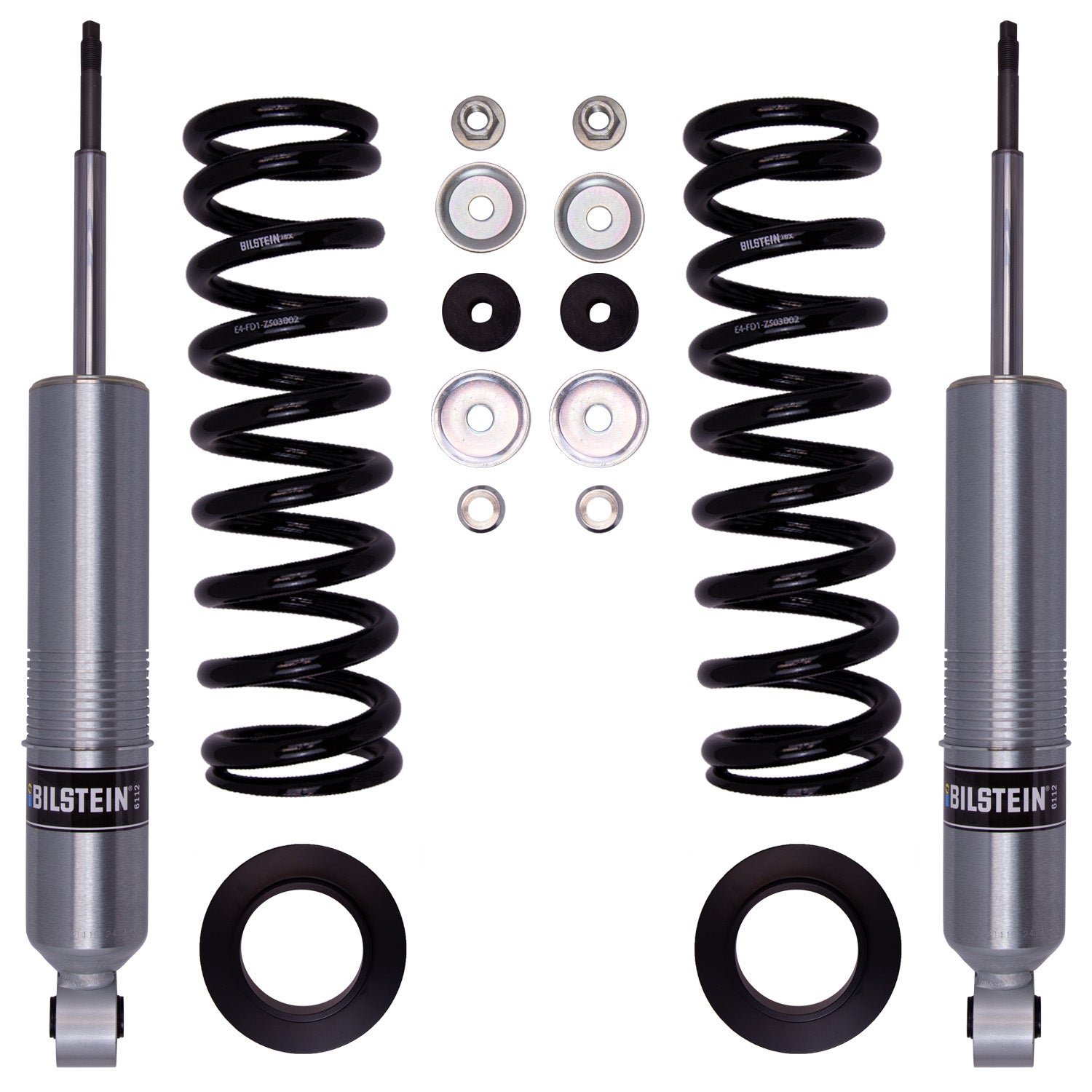

Bilstein B8 6112 leveling kits are designed to provide more ground clearance allow for larger tires and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Characteristics include:

Body Design:Snap Ring Grooved Body (Coilover)
Boot Included:No
Collapsed Length (IN):13.56
Collapsed Length (mm):344.5
Extended Length (IN):18.54
Extended Length (mm):471.0
Finish:Dampers: Zinc Plated/Springs: Black
Front Main Spring Rate (lbs/in):450
Internal Design:Monotube
PartType:Suspension Kit
Piston Diameter:60mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &amp
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:No
Segment:Light Truck
Series:B8 6112
Shaft Diameter:18mm
Spring Seat Included:Yes
Stroke/Travel Length (IN):4.98
Stroke/Travel Length (mm):126.5
Title:Bilstein Shock Absorbers

Customer Video Reviews

Watch genuine customer videos showing their upgrades and honest results of similar products

Fitment Table

This product is compatible with these vehicles:

Year	Make	Model	Notes	Position
2004	Toyota	Tacoma	Base Provides 0-1.9" Front Lift 2.7L 4 Cylinders Standard Cab Pickup 4WD	Front
2004	Toyota	Tacoma	Base Provides 0-2.4" Front Lift 3.4L 6 Cylinders Extended Cab Pickup 4WD	Front
2004	Toyota	Tacoma	Base Provides 0-2.8" Front Lift 3.4L 6 Cylinders Crew Cab Pickup 4WD	Front
2004	Toyota	Tacoma	Pre Runner Provides 0-1.8" Front Lift Extended Cab Pickup	Front
2004	Toyota	Tacoma	Pre Runner Provides 0.8-3.1" Front Lift Crew Cab Pickup	Front
2003	Toyota	Tacoma	Base Provides 0-1.9" Front Lift 2.7L 4 Cylinders Standard Cab Pickup 4WD	Front
2003	Toyota	Tacoma	Base Provides 0-2.4" Front Lift 3.4L 6 Cylinders Extended Cab Pickup 4WD	Front
2003	Toyota	Tacoma	Base Provides 0-2.8" Front Lift 3.4L 6 Cylinders Crew Cab Pickup 4WD	Front
2003	Toyota	Tacoma	Pre Runner Provides 0-1.8" Front Lift Extended Cab Pickup	Front
2003	Toyota	Tacoma	Pre Runner Provides 0.8-3.1" Front Lift Crew Cab Pickup	Front
2002	Toyota	Tacoma	Base Provides 0-1.9" Front Lift 2.7L 4 Cylinders Standard Cab Pickup 4WD	Front
2002	Toyota	Tacoma	Base Provides 0-2.4" Front Lift 3.4L 6 Cylinders Extended Cab Pickup 4WD	Front
2002	Toyota	Tacoma	Base Provides 0-2.8" Front Lift 3.4L 6 Cylinders Crew Cab Pickup 4WD	Front
2002	Toyota	Tacoma	Pre Runner Provides 0-1.8" Front Lift Extended Cab Pickup	Front
2002	Toyota	Tacoma	Pre Runner Provides 0.8-3.1" Front Lift Crew Cab Pickup	Front
2001	Toyota	Tacoma	Base Provides 0-1.9" Front Lift 2.7L 4 Cylinders Standard Cab Pickup 4WD	Front
2001	Toyota	Tacoma	Base Provides 0-2.4" Front Lift 3.4L 6 Cylinders Extended Cab Pickup 4WD	Front
2001	Toyota	Tacoma	Base Provides 0-2.8" Front Lift 3.4L 6 Cylinders Crew Cab Pickup 4WD	Front
2001	Toyota	Tacoma	Pre Runner Provides 0-1.8" Front Lift Extended Cab Pickup	Front
2001	Toyota	Tacoma	Pre Runner Provides 0.8-3.1" Front Lift Crew Cab Pickup	Front
2000	Toyota	Tacoma	Base Provides 0-1.9" Front Lift 2.7L 4 Cylinders Standard Cab Pickup 4WD	Front
2000	Toyota	Tacoma	Base Provides 0-2.4" Front Lift 3.4L 6 Cylinders Extended Cab Pickup 4WD	Front
2000	Toyota	Tacoma	Limited Provides 0-2.4" Front Lift	Front
2000	Toyota	Tacoma	Pre Runner Provides 0-1.8" Front Lift Extended Cab Pickup	Front
2000	Toyota	Tacoma	SR5 Provides 0-2.4" Front Lift 3.4L 6 Cylinders Extended Cab Pickup 4WD	Front
1999	Toyota	Tacoma	Base Provides 0-1.9" Front Lift 2.7L 4 Cylinders Standard Cab Pickup 4WD	Front
1999	Toyota	Tacoma	Base Provides 0-2.4" Front Lift 3.4L 6 Cylinders Extended Cab Pickup 4WD	Front
1999	Toyota	Tacoma	Limited Provides 0-2.4" Front Lift	Front
1999	Toyota	Tacoma	Pre Runner Provides 0-1.8" Front Lift Extended Cab Pickup	Front
1999	Toyota	Tacoma	SR5 Provides 0-2.4" Front Lift 3.4L 6 Cylinders Extended Cab Pickup 4WD	Front
1998	Toyota	Tacoma	Base Provides 0-1.9" Front Lift 2.7L 4 Cylinders Standard Cab Pickup 4WD	Front
1998	Toyota	Tacoma	Base Provides 0-2.4" Front Lift 3.4L 6 Cylinders Extended Cab Pickup 4WD	Front
1998	Toyota	Tacoma	Limited Provides 0-2.4" Front Lift	Front
1998	Toyota	Tacoma	Pre Runner Provides 0-1.8" Front Lift Extended Cab Pickup	Front
1998	Toyota	Tacoma	SR5 Provides 0-2.4" Front Lift 3.4L 6 Cylinders Extended Cab Pickup 4WD	Front
1997	Toyota	Tacoma	Base Provides 0-1.9" Front Lift 2.7L 4 Cylinders Standard Cab Pickup 4WD	Front
1997	Toyota	Tacoma	Base Provides 0-2.4" Front Lift 3.4L 6 Cylinders Extended Cab Pickup 4WD	Front
1997	Toyota	Tacoma	SR5 Provides 0-2.4" Front Lift Extended Cab Pickup 4WD	Front
1996	Toyota	Tacoma	Base Provides 0-1.9" Front Lift 2.7L 4 Cylinders Standard Cab Pickup 4WD	Front
1996	Toyota	Tacoma	Base Provides 0-2.4" Front Lift 3.4L 6 Cylinders Extended Cab Pickup 4WD	Front
1996	Toyota	Tacoma	SR5 Provides 0-2.4" Front Lift Extended Cab Pickup 4WD	Front
