Bilstein 41-326084 B8 8112 (ZoneControl CR DSA+) - Front Left Corner Module

Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Included warranty:

This product has 2-year limited warranty.

• Warranty starts from the date of delivery.
• Proof of purchase required for all claims.
• Covers manufacturing defects only.
• Does not cover normal wear & tear.
• Does not cover cosmetic damage or rust damage.

To initiate a claim, simply send an email to support@partspioneer.ca. For more information, read our Warranty Policy.

Choose Bilstein because:

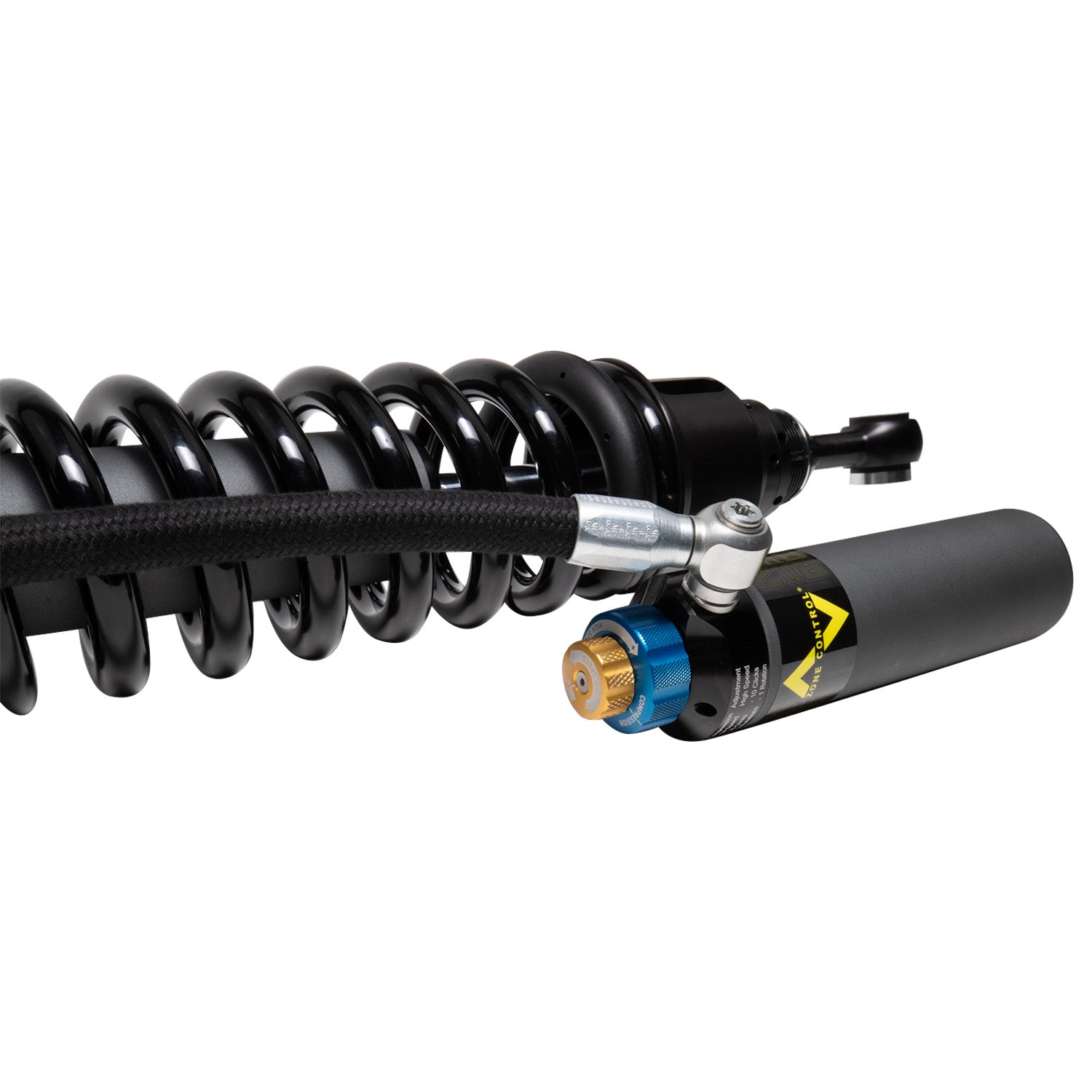

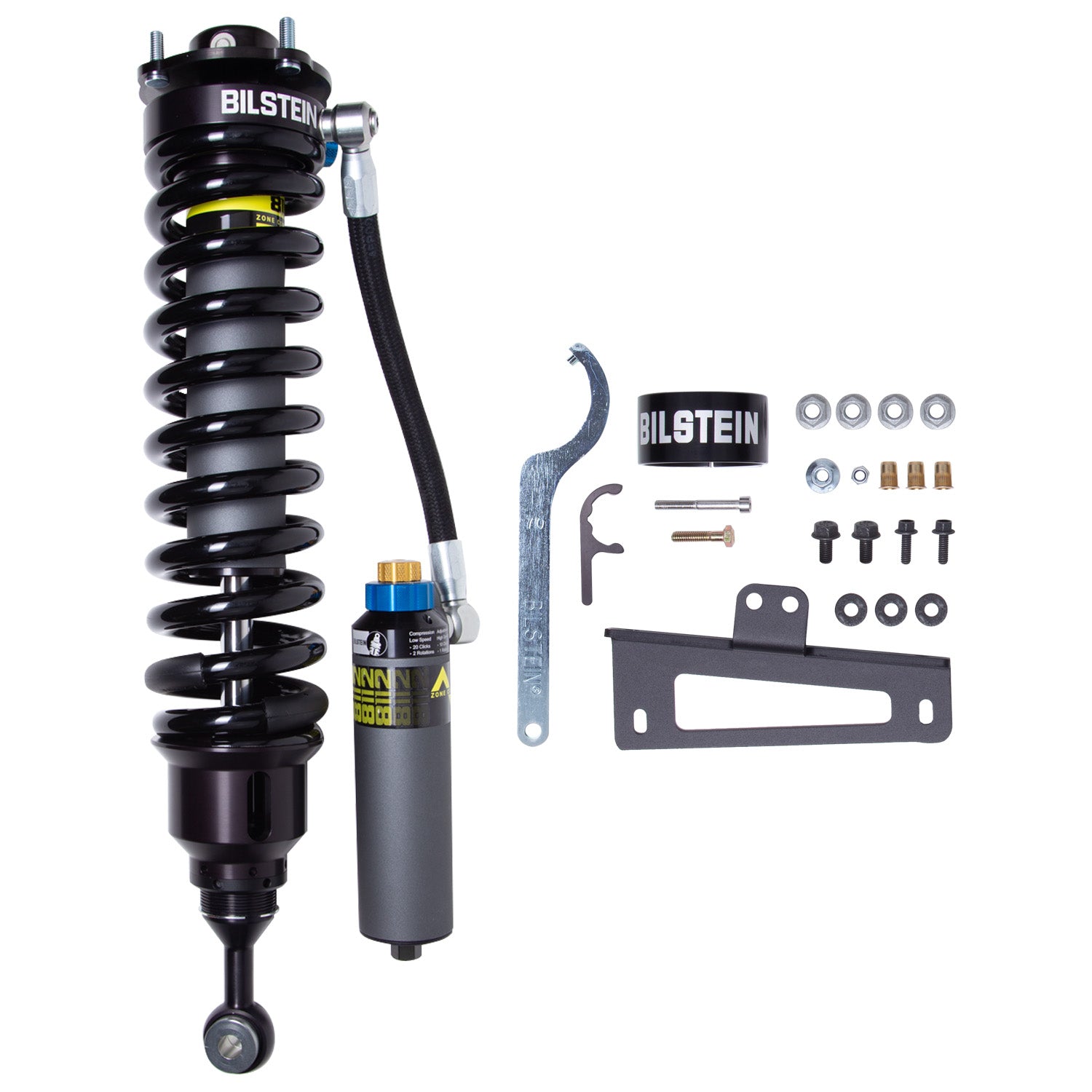

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit 3-way adjustable 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.

Characteristics include:

• Adjustable Damping:Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
• Aftermarket Upper Arms Required:Yes
• Body Design:Smooth Body (Coilover)
• Body Material:Steel
• Boot Included:No
• Collapsed Length (IN):18.90
• Collapsed Length (MM):479.3
• Extended Length (IN):25.20
• Extended Length (MM):640.8
• Finish:Dampers: EVO Grey/Springs: Black
• Front Main Spring Rate (lbs/in):650
• Internal Design:Monotube
• Lower Mount Type:Eye 19.05mm
• PartType:Shocks / Struts
• Piston Diameter:60mm
• Prop 65 (Y/N):Y
• Prop 65 - Short Label:WARNING: Cancer &amp
• Reproductive Harm - www.P65Warnings.ca.gov
• Reservoir:Yes
• Segment:Light Truck
• Series:B8 8112 (ZoneControl CR DSA+)
• Shaft Diameter (mm):22.0
• Spring Seat Included:Yes
• Title:Bilstein Shock Absorbers
• Upper Mount Type:Special
