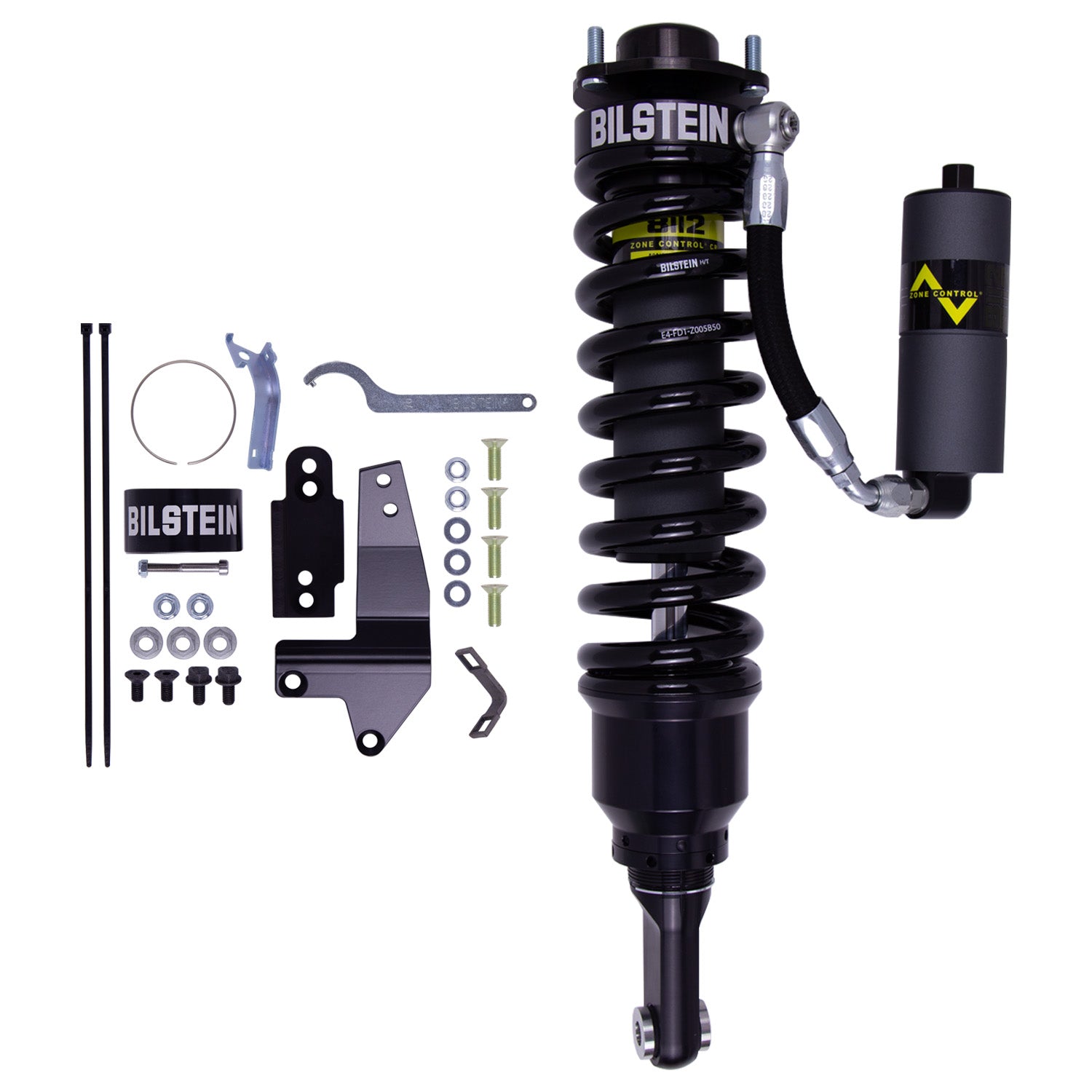

Bilstein 41-324363 B8 8112 (ZoneControl CR) - Front Right Corner Module

Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Included warranty:

This product has 2-year limited warranty.

• Warranty starts from the date of delivery.
• Proof of purchase required for all claims.
• Covers manufacturing defects only.
• Does not cover normal wear & tear.
• Does not cover cosmetic damage or rust damage.

To initiate a claim, simply send an email to support@partspioneer.ca. For more information, read our Warranty Policy.

Choose Bilstein because:

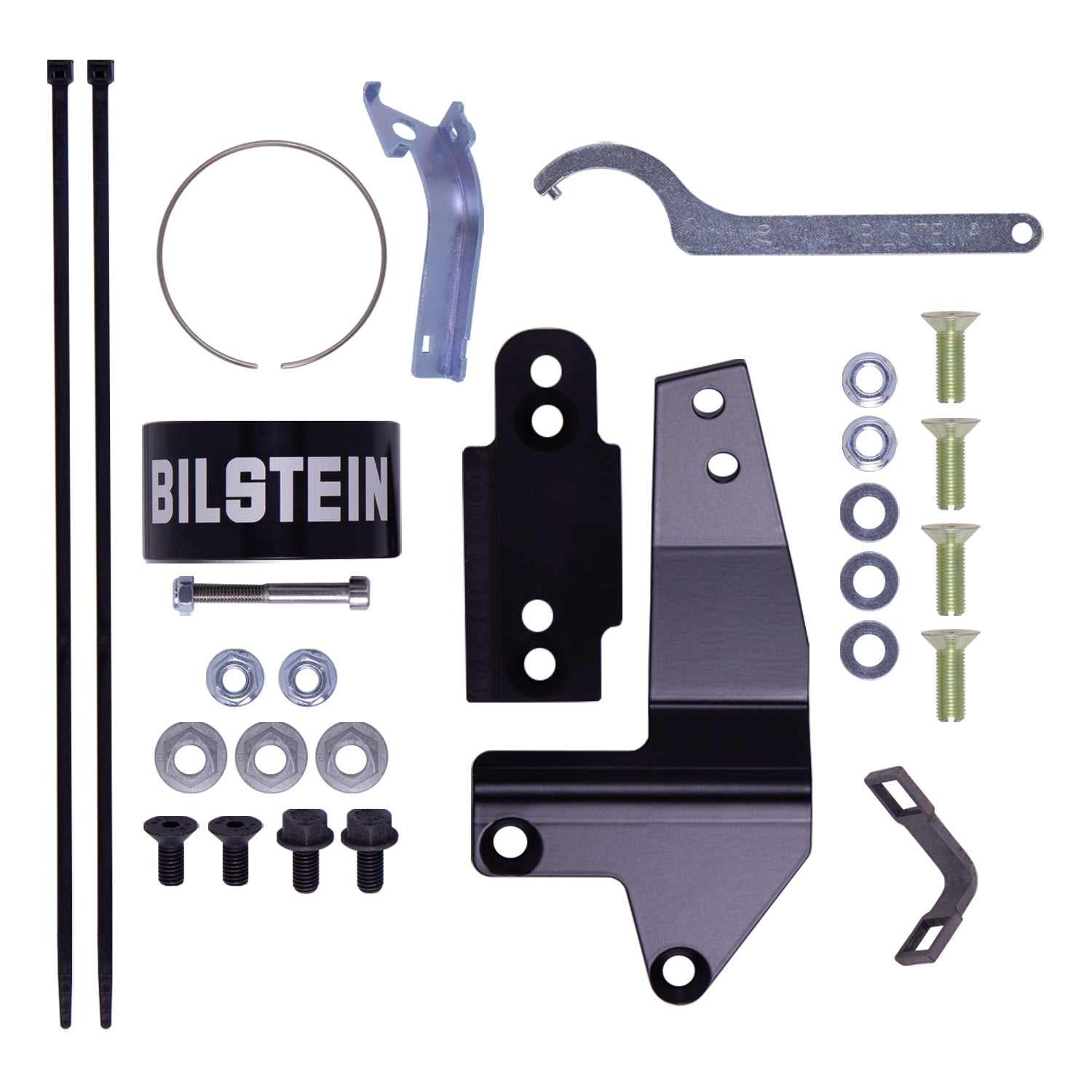

Bilstein B8 8112 (ZoneControl CR) is a direct fit 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Characteristics include:

• Adjustable Damping:Non-Adjustable
• Body Design:Smooth Body (Coilover)
• Body Material:Steel
• Boot Included:No
• Collapsed Length (IN):17.99
• Collapsed Length (MM):456.9
• Extended Length (IN):22.80
• Extended Length (MM):579.1
• Finish:Dampers: EVO Grey / Springs: Black
• Front Main Spring Rate (lbs/in):600 lbs
• Internal Design:Monotube
• Lower Mount Type:Eye 14.1mm
• Optional Heavy Load Springs:53-291387 53-332837
• PartType:Shocks / Struts
• Piston Diameter:60mm
• Prop 65 (Y/N):Y
• Prop 65 - Short Label:WARNING: Cancer &amp
• Reproductive Harm - www.P65Warnings.ca.gov
• Reservoir:Yes
• Segment:Light Truck
• Series:B8 8112 (ZoneControl CR)
• Shaft Diameter (mm):22.0
• Spring Seat Included:Yes
• Title:Bilstein Shock Absorbers
• Upper Mount Type:Special

Some of the interchangeable part numbers are:
