Name: Bilstein 41-314326 B8 8112 Black Hawk - Rear Left Corner Module
Brand: Bilstein
SKU: BLS-41-314326
Price: 2336.96 CAD
Availability: InStock
Rating: 4.9 (480 reviews)

SKU: BLS-41-314326

Same Day Shipping

Cutoff Time: 1:00 PM EST

$2,336.96 CAD

In stock

VIN (optional)

If provided, we'll verify fitment before your order ships and contact you if the selected part is incompatible. Enter your VIN, then add the product to your cart.

Free Shipping!

Product details

Part Name Strut and Coil Spring Assembly
Brand Bilstein
Country of Manufacture United States
Part Number 41-314326
UPC 651860936154

Estimate Delivery Date

Postal Code (First 3 Characters)

Have Questions?

Ask our experts via Live Chat at the bottom right corner of this page.

Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Included warranty:

This product has 2-year limited warranty.

Warranty starts from the date of delivery.
Proof of purchase required for all claims.
Covers manufacturing defects only.
Does not cover normal wear & tear.
Does not cover cosmetic damage or rust damage.

To initiate a claim, simply send an email to support@partspioneer.ca. For more information, read our Warranty Policy.

Choose Bilstein because:

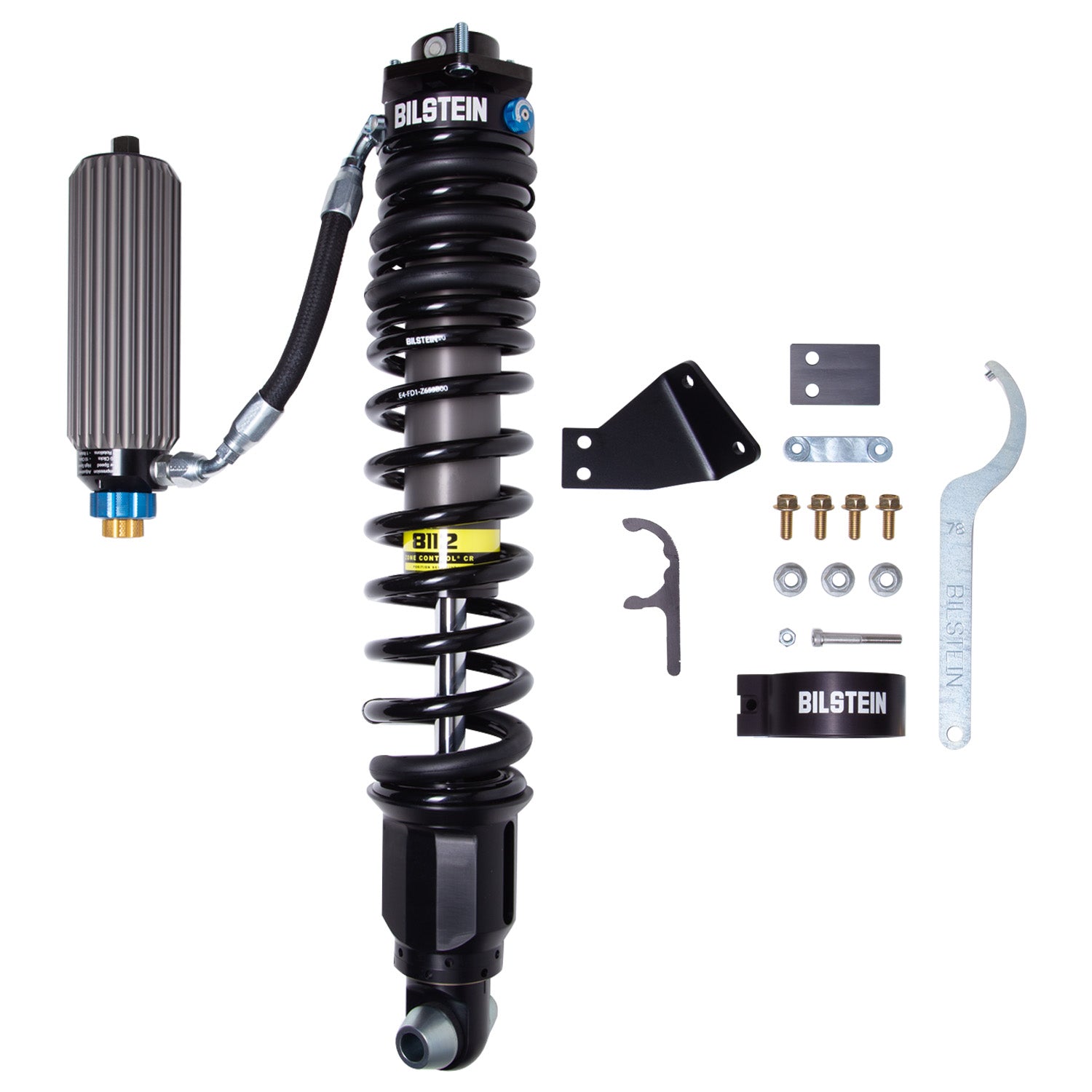

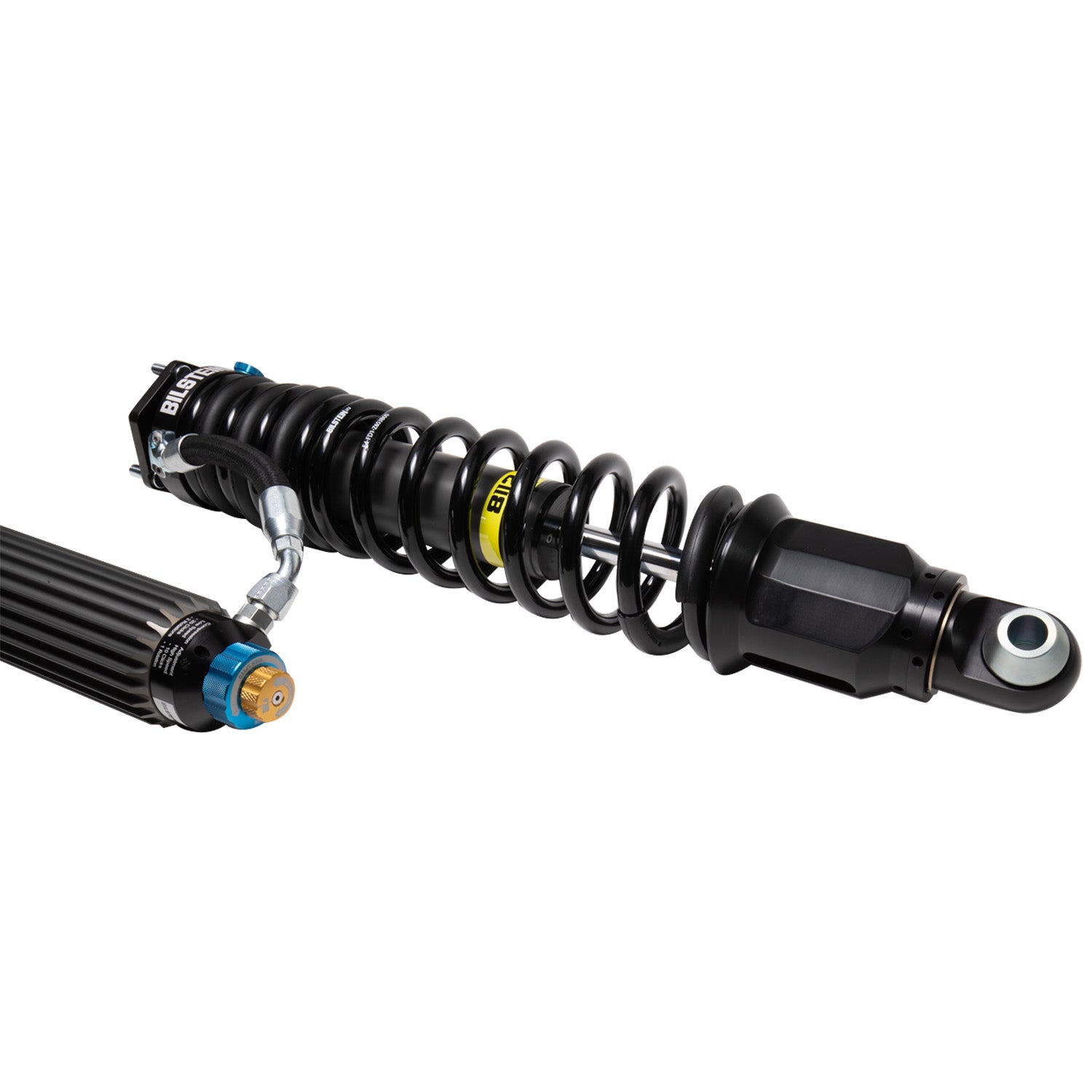

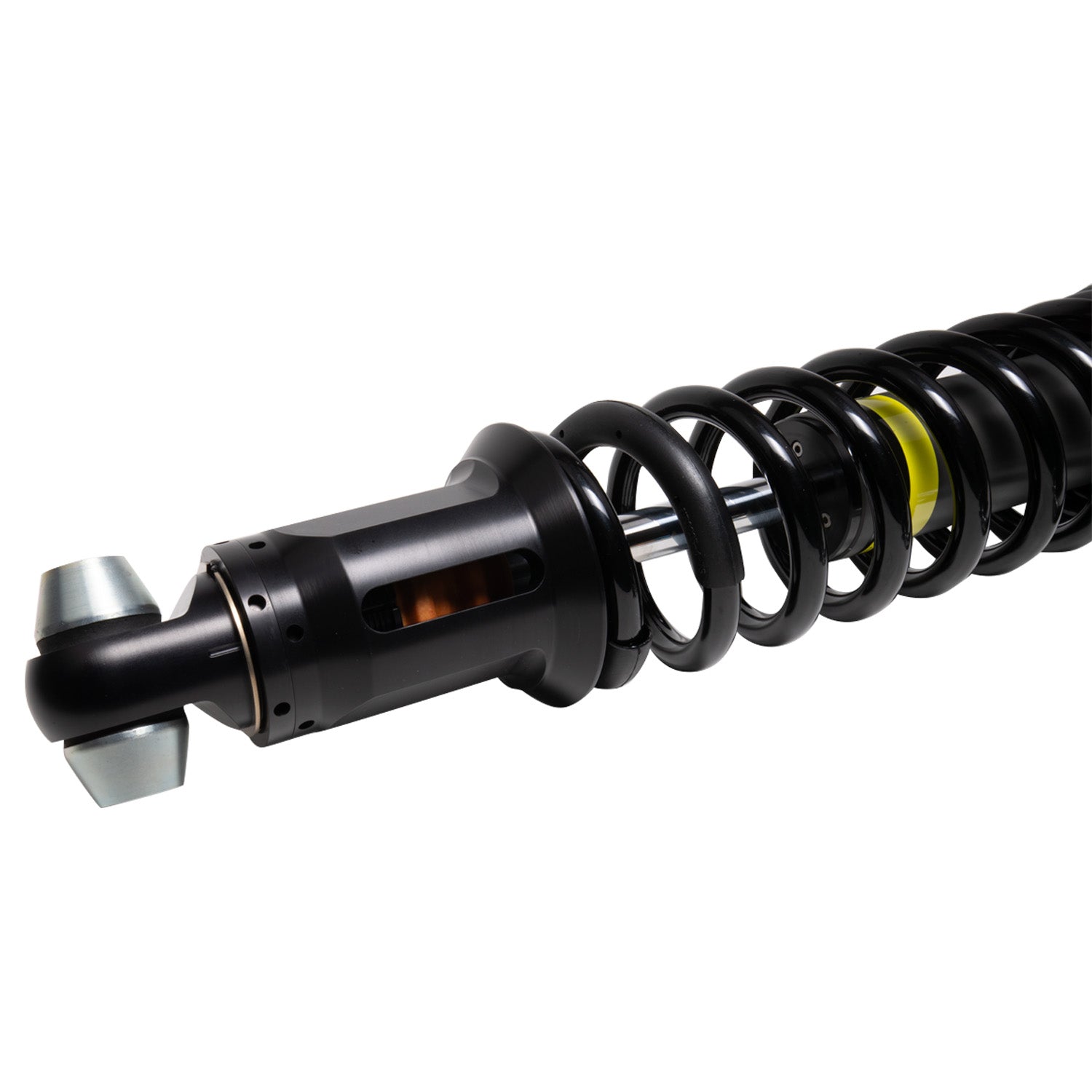

BILSTEIN B8 8112 Black Hawk 3-Way adjustable coilovers are direct fit feature packed solutions for trucks and SUVs. The large 2.65” OD Aluminum shock body paired with a unique finned remote reservoir offers ZoneControl® position sensitive damping in both compression and rebound. Plus 3 external damping adjustments for high/low speed compression and the internal bump stop provides a wide range of damping option. The ZoneControl® offers a significant advantage by virtually eliminating hard bottoming and keeping the ride buttery smooth over the small stuff. Whether you’re driving rugged trails or paved roads fully loaded or unloaded the B8 8112 Black Hawk offers the “best in class” ride experience.

Characteristics include:

Adjustable Damping:Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Body Design:Smooth Body (Coilover)
Body Material:Aluminum
Boot Included:No
Collapsed Length (IN):18.40
Collapsed Length (MM):467.1
Extended Length (IN):26.60
Extended Length (MM):674.6
Finish:Dampers: EVO Grey/Springs: Black
Internal Design:Monotube
Lower Mount Type:Eye 25.4mm with Heim Spacers
PartType:Shocks / Struts
Piston Diameter:60mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &amp
Reproductive Harm - www.P65Warnings.ca.gov
Rear Main Spring Rate (lbs/in):288
Reservoir:Yes - Finned Aluminum
Segment:Light Truck
Series:B8 8112 Black Hawk
Shaft Diameter (mm):22.0
Spring Seat Included:Yes
Title:Bilstein Shock Absorbers
Upper Mount Type:Special

Customer Video Reviews

Watch genuine customer videos showing their upgrades and honest results of similar products

Fitment Table

This product is compatible with these vehicles:

Year	Make	Model	Notes	Position
2025	Ford	Bronco	Badlands Provides 1.6-2.2" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2025	Ford	Bronco	Badlands Provides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2025	Ford	Bronco	Base Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2025	Ford	Bronco	Base Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2025	Ford	Bronco	Big Bend Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2025	Ford	Bronco	Heritage Edition Provides 0.5-1.1" Rear Lift 4 Door	Rear Left
2025	Ford	Bronco	Outer Banks Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2025	Ford	Bronco	Stroppe Edition Provides 1.0-1.7" Rear Lift 2 Door	Rear Left
2024	Ford	Bronco	Badlands Provides 1.6-2.2" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2024	Ford	Bronco	Badlands Provides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2024	Ford	Bronco	Big Bend Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2024	Ford	Bronco	Big Bend Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2024	Ford	Bronco	Black Diamond Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2024	Ford	Bronco	Black Diamond Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2024	Ford	Bronco	Everglades Provides 0.5-1.1" Rear Lift 4 Door	Rear Left
2024	Ford	Bronco	Heritage Edition Provides 0.5-1.1" Rear Lift 4 Door	Rear Left
2024	Ford	Bronco	Heritage Edition Provides 1.0-1.7" Rear Lift 2 Door	Rear Left
2024	Ford	Bronco	Heritage Limited Edition Provides 0.5-1.1" Rear Lift 4 Door	Rear Left
2024	Ford	Bronco	Heritage Limited Edition Provides 1.0-1.7" Rear Lift 2 Door	Rear Left
2024	Ford	Bronco	Outer Banks Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2024	Ford	Bronco	Outer Banks Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2024	Ford	Bronco	Wildtrak Provides 0.5-1.1" Rear Lift 4 Door	Rear Left
2024	Ford	Bronco	Wildtrak Provides 1.0-1.7" Rear Lift 2 Door	Rear Left
2023	Ford	Bronco	Badlands Provides 1.6-2.2" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2023	Ford	Bronco	Badlands Provides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2023	Ford	Bronco	Base Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2023	Ford	Bronco	Base Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2023	Ford	Bronco	Big Bend Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2023	Ford	Bronco	Big Bend Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2023	Ford	Bronco	Black Diamond Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2023	Ford	Bronco	Black Diamond Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2023	Ford	Bronco	Everglades Provides 0.5-1.1" Rear Lift 4 Door	Rear Left
2023	Ford	Bronco	Heritage Edition Provides 0.5-1.1" Rear Lift 4 Door	Rear Left
2023	Ford	Bronco	Heritage Edition Provides 1.0-1.7" Rear Lift 2 Door	Rear Left
2023	Ford	Bronco	Heritage Limited Edition Provides 0.5-1.1" Rear Lift 4 Door	Rear Left
2023	Ford	Bronco	Heritage Limited Edition Provides 1.0-1.7" Rear Lift 2 Door	Rear Left
2023	Ford	Bronco	Outer Banks Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2023	Ford	Bronco	Outer Banks Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2023	Ford	Bronco	Wildtrak Provides 0.5-1.1" Rear Lift 4 Door	Rear Left
2023	Ford	Bronco	Wildtrak Provides 1.0-1.7" Rear Lift 2 Door	Rear Left
2022	Ford	Bronco	Badlands Provides 1.6-2.2" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2022	Ford	Bronco	Badlands Provides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2022	Ford	Bronco	Base Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2022	Ford	Bronco	Base Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2022	Ford	Bronco	Big Bend Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2022	Ford	Bronco	Big Bend Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2022	Ford	Bronco	Black Diamond Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2022	Ford	Bronco	Black Diamond Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2022	Ford	Bronco	Everglades Provides 0.5-1.1" Rear Lift 4 Door	Rear Left
2022	Ford	Bronco	Outer Banks Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2022	Ford	Bronco	Outer Banks Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2022	Ford	Bronco	Wildtrak Provides 0.5-1.1" Rear Lift 4 Door	Rear Left
2022	Ford	Bronco	Wildtrak Provides 1.0-1.7" Rear Lift 2 Door	Rear Left
2021	Ford	Bronco	Badlands Provides 1.6-2.2" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2021	Ford	Bronco	Badlands Provides 2.1-2.9" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2021	Ford	Bronco	Base Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2021	Ford	Bronco	Base Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2021	Ford	Bronco	Big Bend Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2021	Ford	Bronco	Big Bend Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2021	Ford	Bronco	Black Diamond Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2021	Ford	Bronco	Black Diamond Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2021	Ford	Bronco	First Edition Provides 0.5-1.1" Rear Lift 4 Door	Rear Left
2021	Ford	Bronco	First Edition Provides 1.0-1.7" Rear Lift 2 Door	Rear Left
2021	Ford	Bronco	Outer Banks Provides 2.7-3.3" Rear Lift Without Sasquatch Package; 0.5-1.1" Rear Lift With Sasquatch Package 4 Door	Rear Left
2021	Ford	Bronco	Outer Banks Provides 2.8" Rear Lift Without Sasquatch Package; 1.0-1.7" Rear Lift With Sasquatch Package 2 Door	Rear Left
2021	Ford	Bronco	Wildtrak Provides 0.5-1.1" Rear Lift 4 Door	Rear Left
2021	Ford	Bronco	Wildtrak Provides 1.0-1.7" Rear Lift 2 Door	Rear Left
