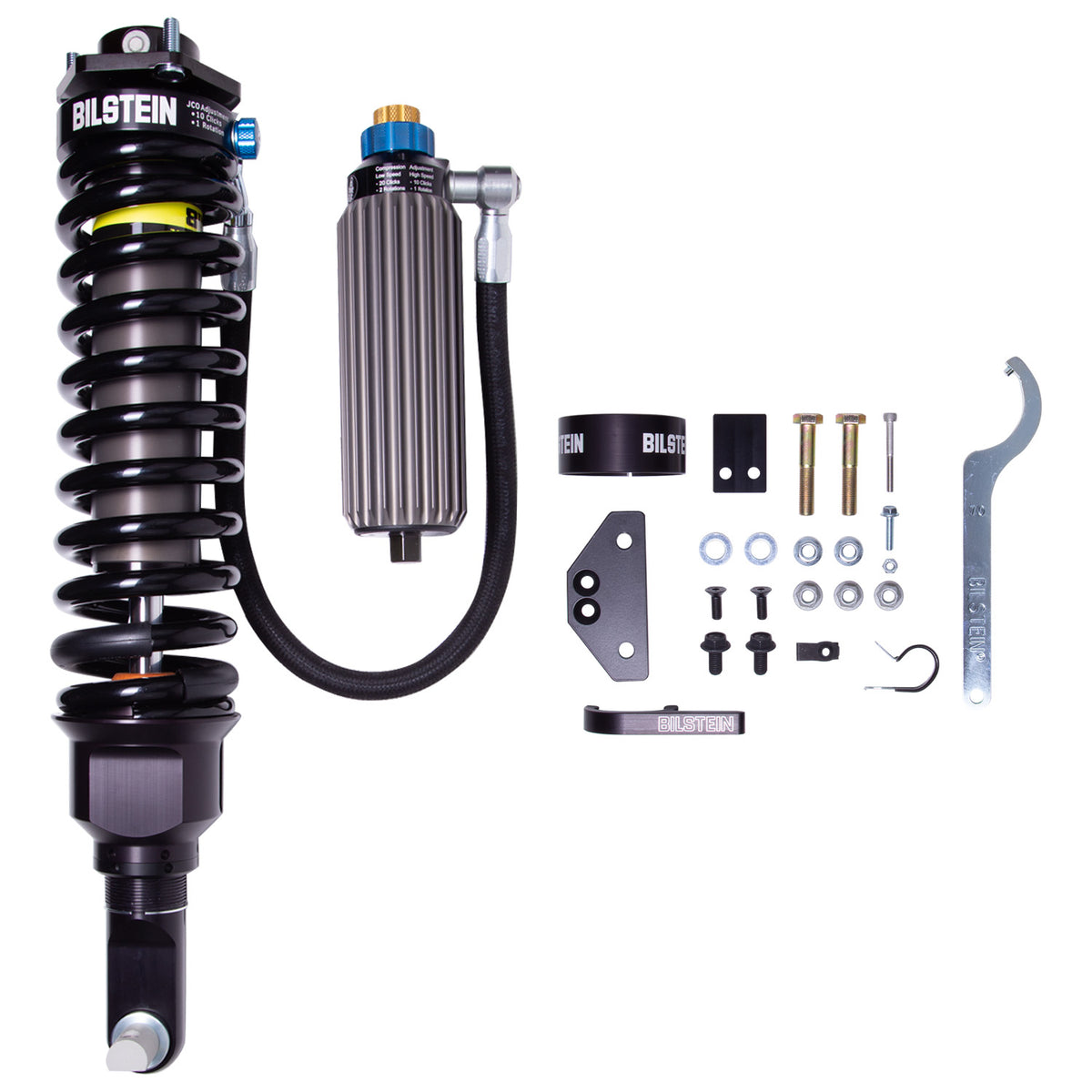

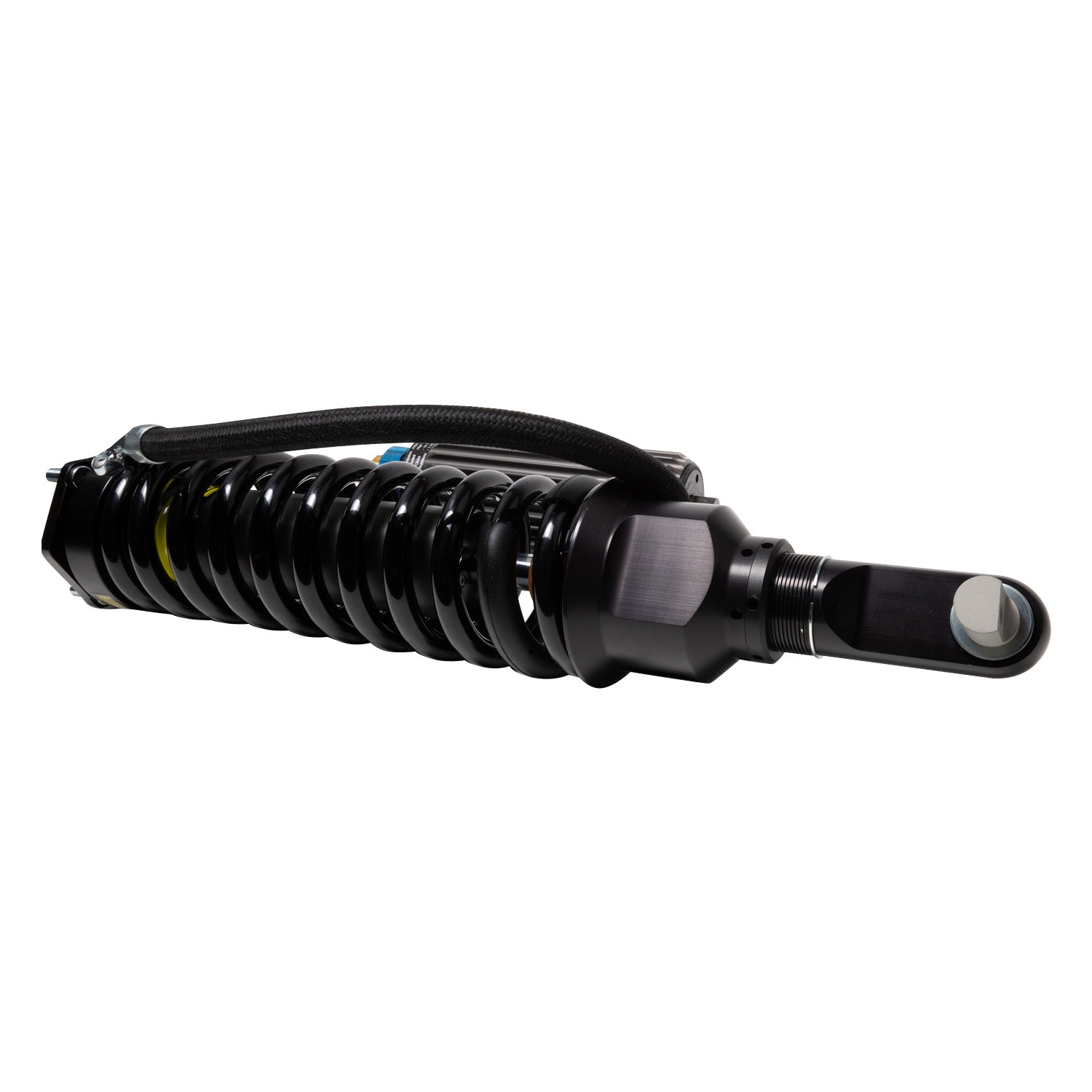

Bilstein 41-314227 B8 8112 Black Hawk - Front Right Corner Module

Bilstein 41-314227 B8 8112 Black Hawk - Front Right Corner Module

Name: Bilstein 41-314227 B8 8112 Black Hawk - Front Right Corner Module
Brand: Bilstein
SKU: BLS-41-314227
Price: 3022.67 CAD
Availability: InStock
Rating: 4.9 (362 reviews)

SKU: BLS-41-314227

Same Day Shipping

Cutoff Time: 1:00 PM EST

$3,022.67 CAD

~~$4,587.80 CAD~~ -34% $3,022.67 CAD

In stock

Free Shipping!

Product details

Part Name Strut and Coil Spring Assembly
Position Front Right
Brand Bilstein
Country of Manufacture United States
Part Number 41-314227
UPC 651860935881

Estimate Delivery Date

Postal Code (First 3 Characters)

Have Questions?

Ask our experts via Live Chat at the bottom right corner of this page.

Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Included warranty:

This product has life-time limited warranty.

Warranty starts from the date of delivery.
Proof of purchase required for all claims.
Covers manufacturing defects only.
Does not cover normal wear & tear.
Does not cover cosmetic damage or rust damage.

To initiate a claim, simply send an email to support@partspioneer.ca. For more information, read our Warranty Policy.

Choose Bilstein because:

BILSTEIN B8 8112 Black Hawk 3-Way adjustable coilovers are direct fit feature packed solutions for trucks and SUVs. The large 2.65” OD Aluminum shock body paired with a unique finned remote reservoir offers ZoneControl® position sensitive damping in both compression and rebound. Plus 3 external damping adjustments for high/low speed compression and the internal bump stop provides a wide range of damping option. The ZoneControl® offers a significant advantage by virtually eliminating hard bottoming and keeping the ride buttery smooth over the small stuff. Whether you’re driving rugged trails or paved roads fully loaded or unloaded the B8 8112 Black Hawk offers the “best in class” ride experience.

Characteristics include:

Adjustable Damping:Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Aftermarket Upper Arms Required:Yes
Body Design:Smooth Body (Coilover)
Body Material:Aluminum
Boot Included:No
Collapsed Length (IN):17.59
Collapsed Length (MM):446.2
Extended Length (IN):23.40
Extended Length (MM):594.7
Finish:Dampers: EVO Grey/Springs: Black
Front Main Spring Rate (lbs/in):400
Internal Design:Monotube
Lower Mount Type:Crossbar
PartType:Shocks / Struts
Piston Diameter:60mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &amp
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:Yes - Finned Aluminum
Segment:Light Truck
Series:B8 8112 Black Hawk
Shaft Diameter (mm):22.0
Spring Seat Included:Yes
Title:Bilstein Shock Absorbers
Upper Mount Type:Special

Customer Video Reviews

Watch genuine customer videos showing their upgrades and honest results of similar products

Fitment Table

This product is compatible with these vehicles:

Year	Make	Model	Notes	Position
2025	Ford	Bronco	Badlands Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package 4 Door	Front Right
2025	Ford	Bronco	Badlands Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2025	Ford	Bronco	Base Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" 4 Door	Front Right
2025	Ford	Bronco	Base Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2025	Ford	Bronco	Big Bend Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" 4 Door	Front Right
2025	Ford	Bronco	Heritage Edition Provides 0-1.4" Front Lift 4 Door	Front Right
2025	Ford	Bronco	Outer Banks Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" 4 Door	Front Right
2025	Ford	Bronco	Stroppe Edition Provides 0.6-1.7" Front Lift 2 Door	Front Right
2024	Ford	Bronco	Badlands Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package 4 Door	Front Right
2024	Ford	Bronco	Badlands Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2024	Ford	Bronco	Big Bend Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" 4 Door	Front Right
2024	Ford	Bronco	Big Bend Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2024	Ford	Bronco	Black Diamond Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" 4 Door	Front Right
2024	Ford	Bronco	Black Diamond Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2024	Ford	Bronco	Everglades Provides 0-1.4" Front Lift 4 Door	Front Right
2024	Ford	Bronco	Heritage Edition Provides 0-1.4" Front Lift 4 Door	Front Right
2024	Ford	Bronco	Heritage Edition Provides 0.6-1.7" Front Lift 2 Door	Front Right
2024	Ford	Bronco	Heritage Limited Edition Provides 0-1.4" Front Lift 4 Door	Front Right
2024	Ford	Bronco	Heritage Limited Edition Provides 0.6-1.7" Front Lift 2 Door	Front Right
2024	Ford	Bronco	Outer Banks Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" 4 Door	Front Right
2024	Ford	Bronco	Outer Banks Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2024	Ford	Bronco	Wildtrak Provides 0-1.4" Front Lift 4 Door	Front Right
2024	Ford	Bronco	Wildtrak Provides 0.6-1.7" Front Lift 2 Door	Front Right
2023	Ford	Bronco	Badlands Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package 4 Door	Front Right
2023	Ford	Bronco	Badlands Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2023	Ford	Bronco	Base Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" 4 Door	Front Right
2023	Ford	Bronco	Base Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2023	Ford	Bronco	Big Bend Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" 4 Door	Front Right
2023	Ford	Bronco	Big Bend Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2023	Ford	Bronco	Black Diamond Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" 4 Door	Front Right
2023	Ford	Bronco	Black Diamond Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2023	Ford	Bronco	Everglades Provides 0-1.4" Front Lift 4 Door	Front Right
2023	Ford	Bronco	Heritage Edition Provides 0-1.4" Front Lift 4 Door	Front Right
2023	Ford	Bronco	Heritage Edition Provides 0.6-1.7" Front Lift 2 Door	Front Right
2023	Ford	Bronco	Heritage Limited Edition Provides 0-1.4" Front Lift 4 Door	Front Right
2023	Ford	Bronco	Heritage Limited Edition Provides 0.6-1.7" Front Lift 2 Door	Front Right
2023	Ford	Bronco	Outer Banks Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" 4 Door	Front Right
2023	Ford	Bronco	Outer Banks Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2023	Ford	Bronco	Wildtrak Provides 0-1.4" Front Lift 4 Door	Front Right
2023	Ford	Bronco	Wildtrak Provides 0.6-1.7" Front Lift 2 Door	Front Right
2022	Ford	Bronco	Badlands Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package 4 Door	Front Right
2022	Ford	Bronco	Badlands Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2022	Ford	Bronco	Base Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" 4 Door	Front Right
2022	Ford	Bronco	Base Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2022	Ford	Bronco	Big Bend Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" 4 Door	Front Right
2022	Ford	Bronco	Big Bend Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2022	Ford	Bronco	Black Diamond Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" 4 Door	Front Right
2022	Ford	Bronco	Black Diamond Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2022	Ford	Bronco	Everglades Provides 0-1.4" Front Lift 4 Door	Front Right
2022	Ford	Bronco	Outer Banks Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" 4 Door	Front Right
2022	Ford	Bronco	Outer Banks Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2022	Ford	Bronco	Wildtrak Provides 0-1.4" Front Lift 4 Door	Front Right
2022	Ford	Bronco	Wildtrak Provides 0.6-1.7" Front Lift 2 Door	Front Right
2021	Ford	Bronco	Badlands Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package 4 Door	Front Right
2021	Ford	Bronco	Badlands Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2021	Ford	Bronco	Base Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" 4 Door	Front Right
2021	Ford	Bronco	Base Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2021	Ford	Bronco	Big Bend Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" 4 Door	Front Right
2021	Ford	Bronco	Big Bend Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2021	Ford	Bronco	Black Diamond Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" 4 Door	Front Right
2021	Ford	Bronco	Black Diamond Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2021	Ford	Bronco	First Edition Provides 0-1.4" Front Lift 4 Door	Front Right
2021	Ford	Bronco	First Edition Provides 0.6-1.7" Front Lift 2 Door	Front Right
2021	Ford	Bronco	Outer Banks Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" 4 Door	Front Right
2021	Ford	Bronco	Outer Banks Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package 2 Door	Front Right
2021	Ford	Bronco	Wildtrak Provides 0-1.4" Front Lift 4 Door	Front Right
2021	Ford	Bronco	Wildtrak Provides 0.6-1.7" Front Lift 2 Door	Front Right
