Bilstein 41-298381 B8 8112 (ZoneControl CR) - Front Left Corner Module

Name: Bilstein 41-298381 B8 8112 (ZoneControl CR) - Front Left Corner Module
Brand: Bilstein
SKU: BLS-41-298381
Availability: OutOfStock
Rating: 4.9 (480 reviews)

SKU: BLS-41-298381

Same Day Shipping

Cutoff Time: 1:00 PM EST

$0.00 CAD

VIN (optional)

If provided, we'll verify fitment before your order ships and contact you if the selected part is incompatible. Enter your VIN, then add the product to your cart.

Product details

Part Name Strut and Coil Spring Assembly
Brand Bilstein
Country of Manufacture United States
Part Number 41-298381
UPC 651860854199

Estimate Delivery Date

Postal Code (First 3 Characters)

Have Questions?

Ask our experts via Live Chat at the bottom right corner of this page.

Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Included warranty:

This product has 2-year limited warranty.

Warranty starts from the date of delivery.
Proof of purchase required for all claims.
Covers manufacturing defects only.
Does not cover normal wear & tear.
Does not cover cosmetic damage or rust damage.

To initiate a claim, simply send an email to support@partspioneer.ca. For more information, read our Warranty Policy.

Choose Bilstein because:

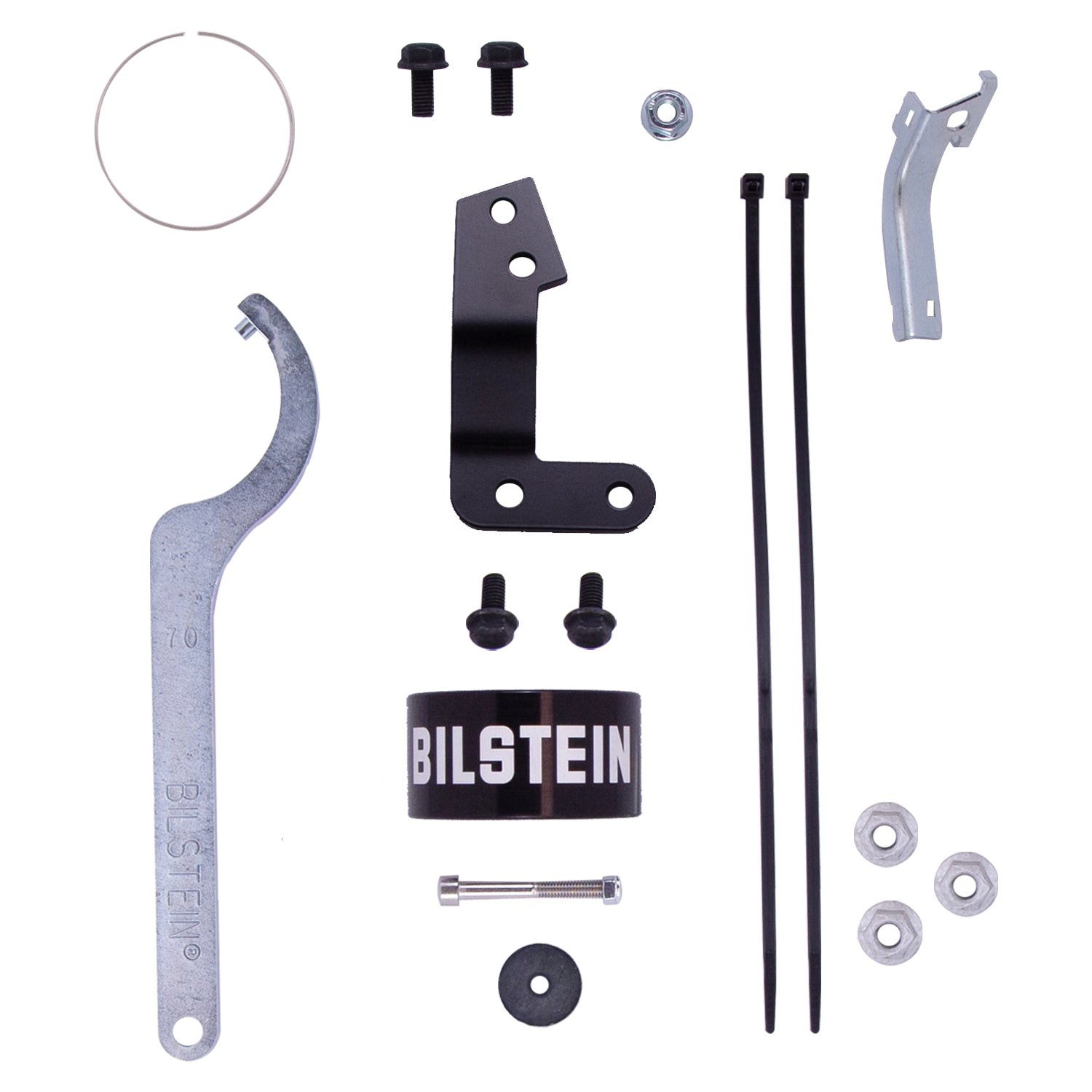

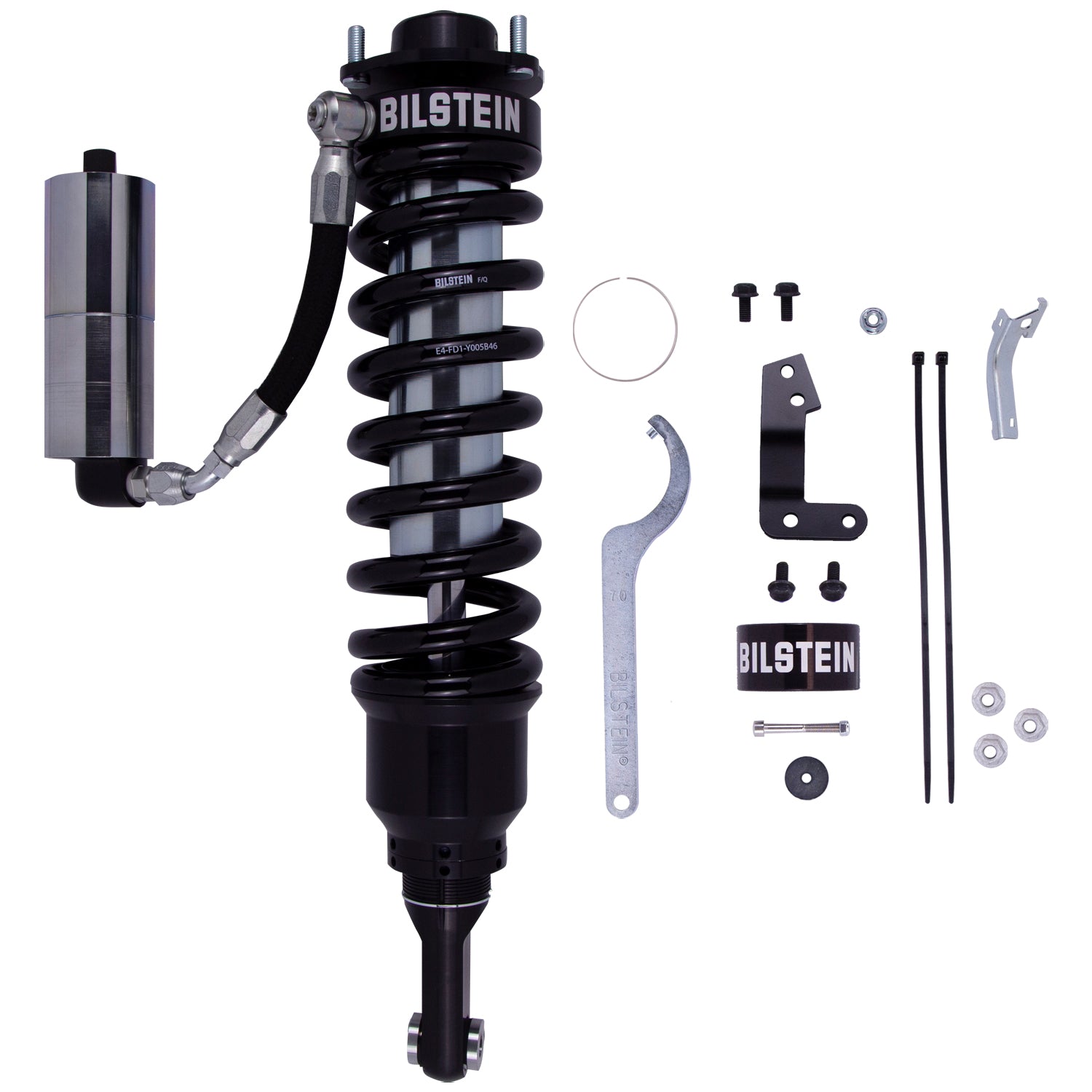

Bilstein B8 8112 (ZoneControl CR) is a direct fit 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Characteristics include:

Adjustable Damping:Non-Adjustable
Body Design:Smooth Body (Coilover)
Body Material:Steel
Boot Included:No
Collapsed Length (IN):17.99
Collapsed Length (MM):456.9
Extended Length (IN):22.80
Extended Length (MM):579.1
Finish:Dampers: Zinc Plated/Springs: Black
Front Main Spring Rate (lbs/in):700 lbs
Internal Design:Monotube
Lower Mount Type:Eye 14.1mm
PartType:Shocks / Struts
Piston Diameter:60mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &amp
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:Yes
Segment:Light Truck
Series:B8 8112 (ZoneControl CR)
Shaft Diameter (mm):22.0
Spring Seat Included:Yes
Title:Bilstein Shock Absorbers
Upper Mount Type:Special

Customer Video Reviews

Watch genuine customer videos showing their upgrades and honest results of similar products

Fitment Table

This product is compatible with these vehicles:

Year	Make	Model	Notes	Position
2024	Toyota	4Runner	TRD Off-Road Premium Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2024	Toyota	4Runner	TRD Off-Road Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2023	Lexus	GX460	Base Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2023	Lexus	GX460	Black Line Edition Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2023	Lexus	GX460	Luxury Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2023	Lexus	GX460	Premium Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2023	Toyota	4Runner	TRD Off-Road Premium Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2023	Toyota	4Runner	TRD Off-Road Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2022	Lexus	GX460	Base Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2022	Lexus	GX460	Luxury Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2022	Lexus	GX460	Premium Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2022	Toyota	4Runner	TRD Off-Road Premium Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2022	Toyota	4Runner	TRD Off-Road Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2022	Toyota	4Runner	Venture Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2021	Lexus	GX460	Base Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2021	Lexus	GX460	Luxury Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2021	Lexus	GX460	Premium Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2021	Toyota	4Runner	TRD Off-Road Premium Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2021	Toyota	4Runner	TRD Off-Road Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2021	Toyota	4Runner	Venture Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2020	Lexus	GX460	Base Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2020	Lexus	GX460	Luxury Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2020	Lexus	GX460	Premium Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2020	Toyota	4Runner	TRD Off-Road Premium Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2020	Toyota	4Runner	TRD Off-Road Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2020	Toyota	4Runner	Venture Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2019	Lexus	GX460	Base Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2019	Lexus	GX460	Luxury Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2019	Lexus	GX460	Premium Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2019	Toyota	4Runner	TRD Off-Road Premium Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2019	Toyota	4Runner	TRD Off-Road Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2018	Lexus	GX460	Base Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2018	Lexus	GX460	Luxury Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2018	Lexus	GX460	Premium Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2018	Toyota	4Runner	TRD Off-Road Premium Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2018	Toyota	4Runner	TRD Off-Road Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2017	Lexus	GX460	Base Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2017	Lexus	GX460	Luxury Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2017	Lexus	GX460	Premium Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2017	Toyota	4Runner	TRD Off-Road Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2016	Lexus	GX460	Base Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2016	Lexus	GX460	Luxury Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2016	Lexus	GX460	Premium Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2016	Toyota	4Runner	Trail Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2015	Lexus	GX460	Base Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2015	Lexus	GX460	Luxury Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2015	Lexus	GX460	Premium Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2015	Toyota	4Runner	Trail Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2014	Lexus	GX460	Base Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2014	Lexus	GX460	Luxury Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2014	Lexus	GX460	Premium Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2014	Toyota	4Runner	Trail Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2013	Lexus	GX460	Base Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2013	Lexus	GX460	Premium Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2013	Toyota	4Runner	Trail Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2012	Lexus	GX460	Base Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2012	Lexus	GX460	Premium Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2012	Toyota	4Runner	Trail Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2011	Lexus	GX460	Base Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2011	Lexus	GX460	Premium Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2011	Toyota	4Runner	Trail Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
2010	Lexus	GX460	Base Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2010	Lexus	GX460	Premium Provides 1.2-3.2" Front Lift; For 150-200 lbs additional front weight	Front Left
2010	Toyota	4Runner	Trail Provides 1.2-3.5" Front Lift; For 150-200 lbs additional front weight; With Kinetic Dynamic Suspension System (KDSS)	Front Left
