Bilstein 41-284872 B8 8112 (ZoneControl CR) - Front Right Corner Module

Name: Bilstein 41-284872 B8 8112 (ZoneControl CR) - Front Right Corner Module
Brand: Bilstein
SKU: BLS-41-284872
Availability: OutOfStock
Rating: 4.9 (480 reviews)

SKU: BLS-41-284872

$0.00 CAD

Same Day Shipping

Cutoff Time: 1:00 PM EST

VIN (optional)

If provided, we'll verify fitment before your order ships and contact you if the selected part is incompatible. Enter your VIN, then add the product to your cart.

Product details

Part Name Strut and Coil Spring Assembly
Brand Bilstein
Country of Manufacture United States
Part Number 41-284872
UPC 651860852294

Estimate Delivery Date

Postal Code (First 3 Characters)

Have Questions?

Ask our experts via Live Chat at the bottom right corner of this page.

Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Included warranty:

This product has 2-year limited warranty.

Warranty starts from the date of delivery.
Proof of purchase required for all claims.
Covers manufacturing defects only.
Does not cover normal wear & tear.
Does not cover cosmetic damage or rust damage.

To initiate a claim, simply send an email to support@partspioneer.ca. For more information, read our Warranty Policy.

Choose Bilstein because:

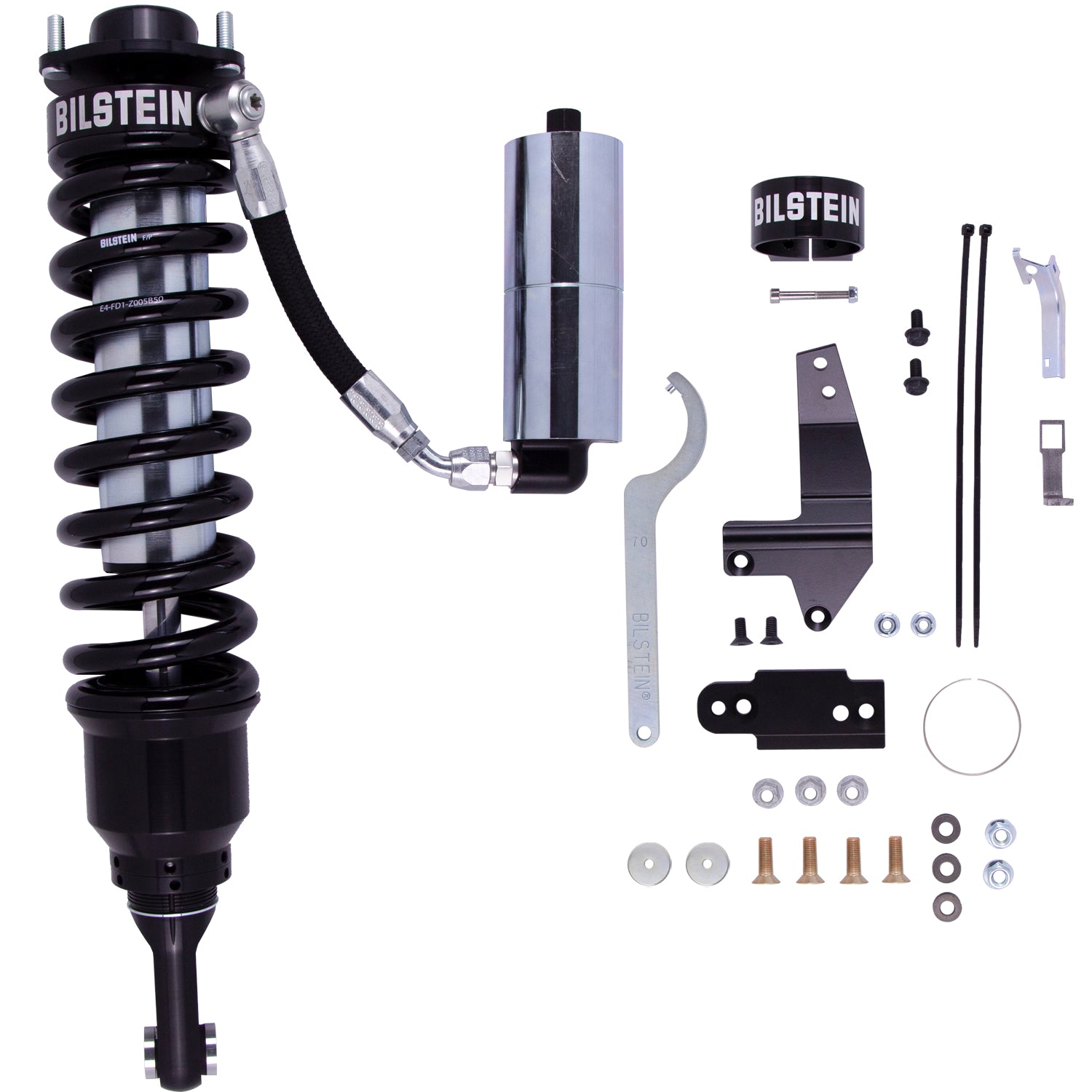

Bilstein B8 8112 (ZoneControl CR) is a direct fit 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Characteristics include:

Adjustable Damping:Non-Adjustable
Body Design:Smooth Body (Coilover)
Body Material:Steel
Boot Included:No
Collapsed Length (IN):17.99
Collapsed Length (MM):456.9
Extended Length (IN):22.80
Extended Length (MM):579.1
Finish:Dampers: Zinc Plated/Springs: Black
Front Main Spring Rate (lbs/in):700 lbs
Internal Design:Monotube
Lower Mount Type:Eye 14.1mm
PartType:Shocks / Struts
Piston Diameter:60mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &amp
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:Yes
Segment:Light Truck
Series:B8 8112 (ZoneControl CR)
Shaft Diameter (mm):22.0
Spring Seat Included:Yes
Title:Bilstein Shock Absorbers
Upper Mount Type:Special

Customer Video Reviews

Watch genuine customer videos showing their upgrades and honest results of similar products

Fitment Table

This product is compatible with these vehicles:

Year	Make	Model	Notes	Position
2022	Toyota	4Runner	SR5 Premium Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2022	Toyota	4Runner	SR5 Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2022	Toyota	4Runner	Trail Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2022	Toyota	4Runner	TRD Off-Road Premium Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2022	Toyota	4Runner	TRD Off-Road Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2022	Toyota	4Runner	TRD Pro Front Lift Height: 0.5-2"; For 150-200 lbs additional front weight	Front Right
2022	Toyota	4Runner	Venture Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2021	Toyota	4Runner	SR5 Premium Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2021	Toyota	4Runner	SR5 Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2021	Toyota	4Runner	Trail Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2021	Toyota	4Runner	TRD Off-Road Premium Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2021	Toyota	4Runner	TRD Off-Road Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2021	Toyota	4Runner	TRD Pro Front Lift Height: 0.5-2"; For 150-200 lbs additional front weight	Front Right
2021	Toyota	4Runner	Venture Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2020	Toyota	4Runner	SR5 Premium Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2020	Toyota	4Runner	SR5 Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2020	Toyota	4Runner	TRD Off-Road Premium Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2020	Toyota	4Runner	TRD Off-Road Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2020	Toyota	4Runner	TRD Pro Front Lift Height: 0.5-2"; For 150-200 lbs additional front weight	Front Right
2020	Toyota	4Runner	Venture Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2019	Toyota	4Runner	SR5 Premium Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2019	Toyota	4Runner	SR5 Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2019	Toyota	4Runner	TRD Off-Road Premium Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2019	Toyota	4Runner	TRD Off-Road Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2019	Toyota	4Runner	TRD Pro Front Lift Height: 0.5-2"; For 150-200 lbs additional front weight	Front Right
2018	Toyota	4Runner	SR5 Premium Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2018	Toyota	4Runner	SR5 Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2018	Toyota	4Runner	TRD Off-Road Premium For 150-200 lbs additional front weight; Without Kinetic Dynamic Suspension System (KDSS); Front Lift Height: 1.5-3"	Front Right
2018	Toyota	4Runner	TRD Off-Road Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2018	Toyota	4Runner	TRD Pro Front Lift Height: 0.5-2"; For 150-200 lbs additional front weight	Front Right
2017	Toyota	4Runner	SR5 Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2017	Toyota	4Runner	TRD Off-Road Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2017	Toyota	4Runner	TRD Pro Front Lift Height: 0.5-2"; For 150-200 lbs additional front weight	Front Right
2016	Toyota	4Runner	SR5 Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2016	Toyota	4Runner	Trail Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2016	Toyota	4Runner	TRD Pro Front Lift Height: 0.5-2"; For 150-200 lbs additional front weight	Front Right
2015	Toyota	4Runner	SR5 Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2015	Toyota	4Runner	Trail Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2015	Toyota	4Runner	TRD Pro Front Lift Height: 0.5-2"; For 150-200 lbs additional front weight	Front Right
2014	Toyota	4Runner	SR5 Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2014	Toyota	4Runner	Trail Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2014	Toyota	FJ Cruiser	Base Front Lift Height: 2-3.1"; For 150-200 lbs additional front weight 4WD	Front Right
2013	Toyota	4Runner	SR5 Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2013	Toyota	4Runner	Trail Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2013	Toyota	FJ Cruiser	Base Front Lift Height: 2-3.1"; For 150-200 lbs additional front weight 4WD	Front Right
2012	Toyota	4Runner	SR5 Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2012	Toyota	4Runner	Trail Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2012	Toyota	FJ Cruiser	Base Front Lift Height: 2-3.1"; For 150-200 lbs additional front weight 4WD	Front Right
2011	Toyota	4Runner	SR5 Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2011	Toyota	4Runner	Trail Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2011	Toyota	FJ Cruiser	Base Front Lift Height: 2-3.1"; For 150-200 lbs additional front weight 4WD	Front Right
2010	Toyota	4Runner	SR5 Front Lift Height: 1.5-3"; For 150-200 lbs additional front weight 4WD	Front Right
2010	Toyota	4Runner	Trail Front Lift Height: 1.5-3"; Without Kinetic Dynamic Suspension System (KDSS); For 150-200 lbs additional front weight	Front Right
2010	Toyota	FJ Cruiser	Base Front Lift Height: 2-3.1"; For 150-200 lbs additional front weight 4WD	Front Right
