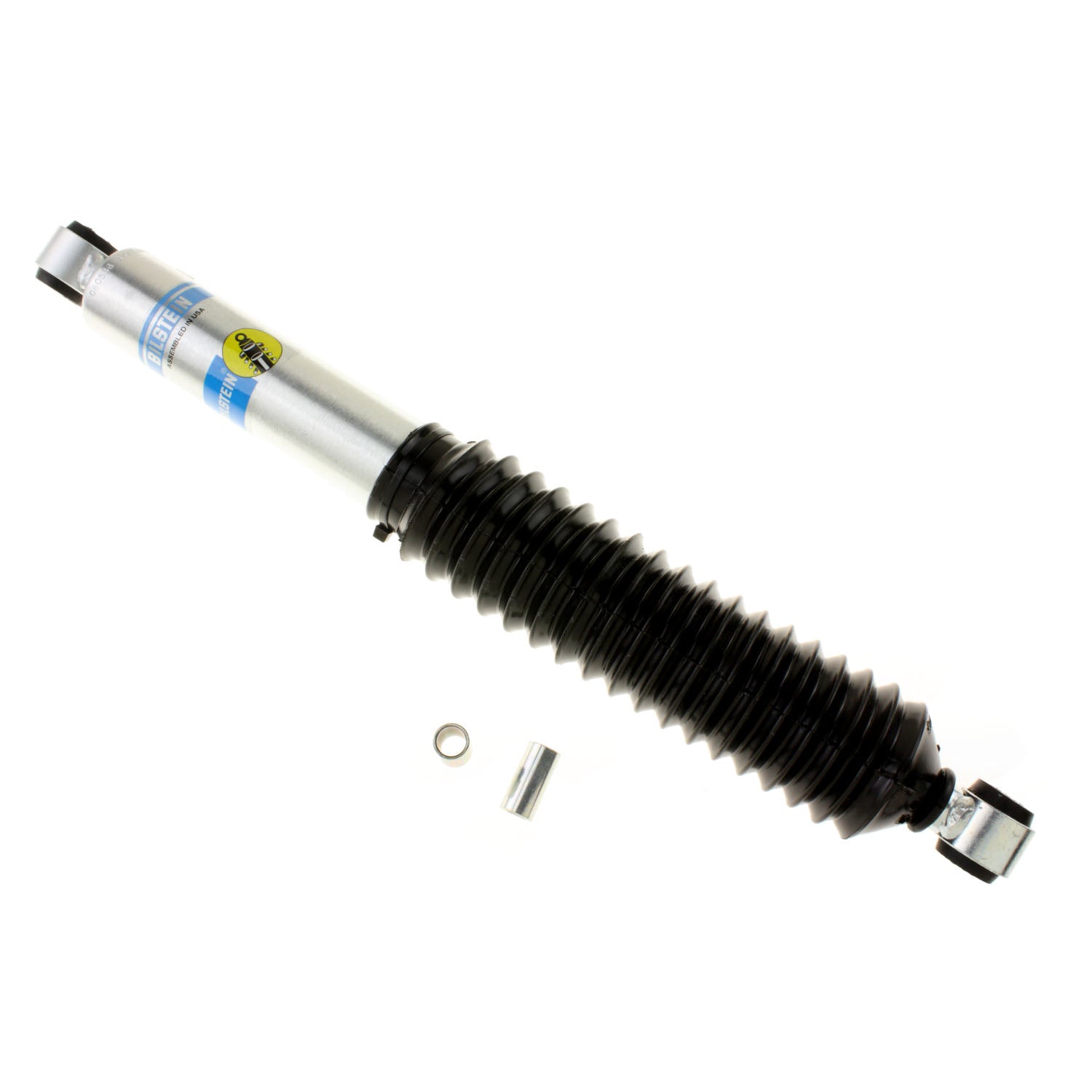

Bilstein 33-233970 B8 5125 - Suspension Shock Absorber

Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Included warranty:

This product has 2-year limited warranty.

• Warranty starts from the date of delivery.
• Proof of purchase required for all claims.
• Covers manufacturing defects only.
• Does not cover normal wear & tear.
• Does not cover cosmetic damage or rust damage.

To initiate a claim, simply send an email to support@partspioneer.ca. For more information, read our Warranty Policy.

Choose Bilstein because:

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Characteristics include:

• Adjustable Damping:Non-Adjustable
• Body Design:Smooth Body (Non-Coilover)
• Boot Included:Black Bellows
• Collapsed Length (IN):13.04
• Collapsed Length (MM):331.3
• Compression @0.52m/s:620
• Extended Length (IN):20.41
• Extended Length (MM):518.4
• Finish:Zinc Plated
• Internal Design:Monotube
• Lower Mount Type:Eye 5/8in
• Mount Type:Eye-to-Eye
• PartType:Shocks / Struts
• Piston Diameter:46mm
• Prop 65 (Y/N):Y
• Prop 65 - Short Label:WARNING: Cancer &amp
• Reproductive Harm - www.P65Warnings.ca.gov
• Rebound @0.52m/s:2495
• Reservoir:No
• Segment:Light Truck
• Series:B8 5125
• Shaft Diameter:14mm
• Spring Seat Included:No
• Stroke/Travel Length (IN):7.37
• Stroke/Travel Length (mm):187.2
• Title:Bilstein Shock Absorbers
• Upper Mount Type:Eye 5/8in

Some of the interchangeable part numbers are:
