If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.
Included warranty:
For warranty coverage information, please see our
Warranty Policy.

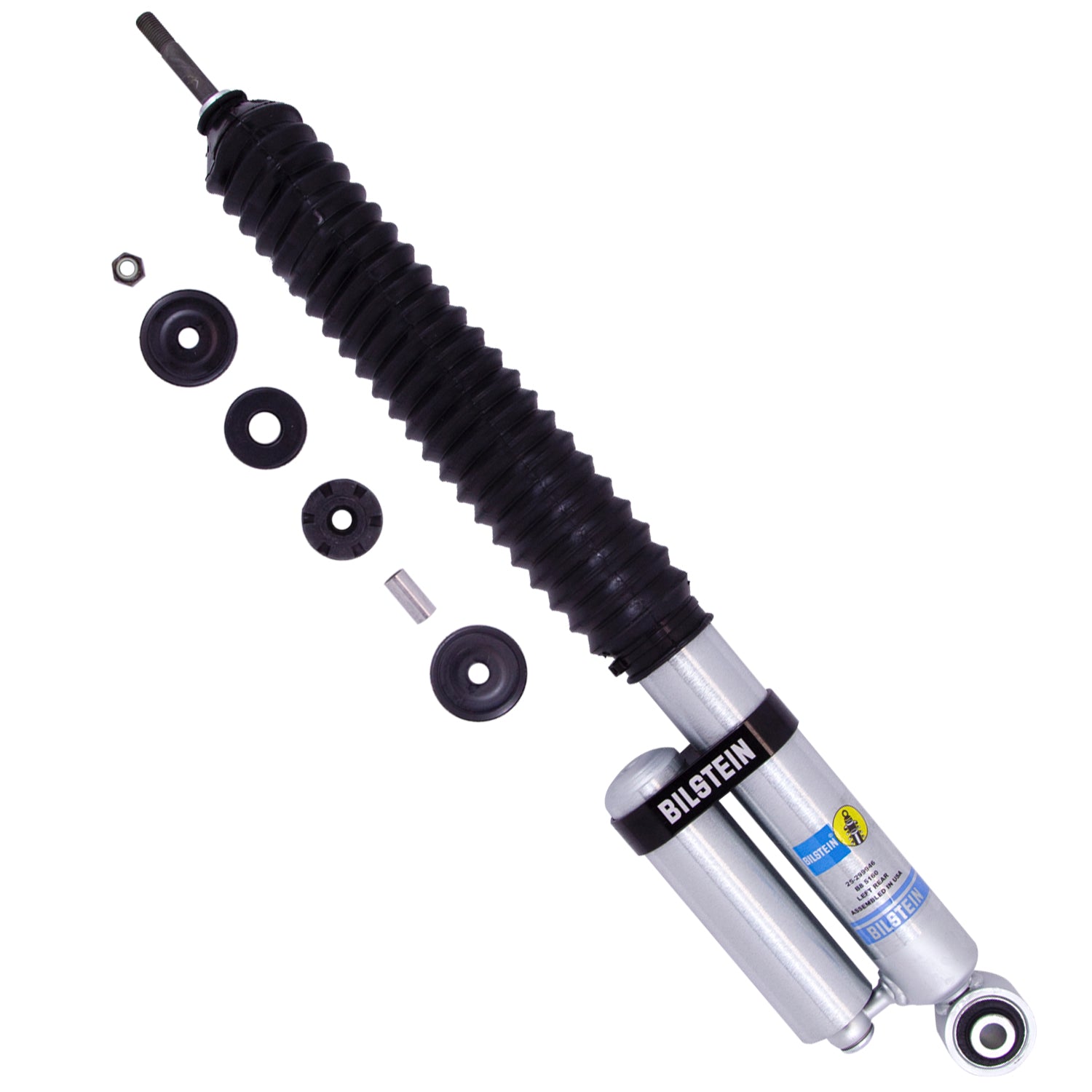

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
Characteristics include:
Adjustable Damping:Non-Adjustable
Billet Reservoir Clamp Included:Yes
Body Design:Smooth Body (Non-Coilover)
Boot Included:Black Bellows
Collapsed Length (IN):15.69
Collapsed Length (MM):398.5
Extended Length (IN):25.75
Extended Length (MM):654.0
Finish:Zinc Plated
Internal Design:Monotube
Lower Mount Type:Eye 14.1mm
Optional Reservoir Clamp:N/A
PartType:Shocks / Struts
Piston Diameter:46mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:Yes
Segment:Light Truck
Series:B8 5160
Shaft Diameter:14mm
Spring Seat Included:No
Stroke/Travel Length (IN):10.06
Stroke/Travel Length (mm):255.5
Title:Bilstein Shock Absorbers
Upper Mount Type:Stem
Some of the interchangeable part numbers are:
Customer Video Reviews
Watch genuine customer videos showing their upgrades and honest results of similar products
Fitment Table
This product is compatible with these vehicles:
Year
Make
Model
Notes
Position
2022
Ram
1500
Big Horn
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2022
Ram
1500
Laramie
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2022
Ram
1500
Limited Longhorn
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2022
Ram
1500
Lone Star
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2022
Ram
1500
Tradesman
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2021
Ram
1500
Big Horn
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2021
Ram
1500
HFE
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2021
Ram
1500
Laramie Longhorn
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2021
Ram
1500
Laramie
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2021
Ram
1500
Limited Longhorn
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2021
Ram
1500
Lone Star
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2021
Ram
1500
Longhorn
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2021
Ram
1500
Tradesman
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2020
Ram
1500
Big Horn
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2020
Ram
1500
Laramie Longhorn
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2020
Ram
1500
Laramie
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2020
Ram
1500
Lone Star
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2020
Ram
1500
Tradesman
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2019
Ram
1500
Big Horn
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2019
Ram
1500
HFE
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2019
Ram
1500
Laramie Longhorn
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2019
Ram
1500
Laramie
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2019
Ram
1500
Lone Star
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
2019
Ram
1500
Tradesman
For Rear Lifted Height: 0-2" without factory Off-Road Package; For Rear Lifted Height: 0-1" with factory Off-Road Package; Without Air Suspension
Coil Rear Spring
Rear Left
