Product details
Part NameShock Absorber
BrandBilstein
Country of ManufactureUnited States
Part Number24-266666
UPC651860803999
Estimate Delivery Date
Have Questions?
Ask our experts via Live Chat at the bottom right corner of this page.
If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

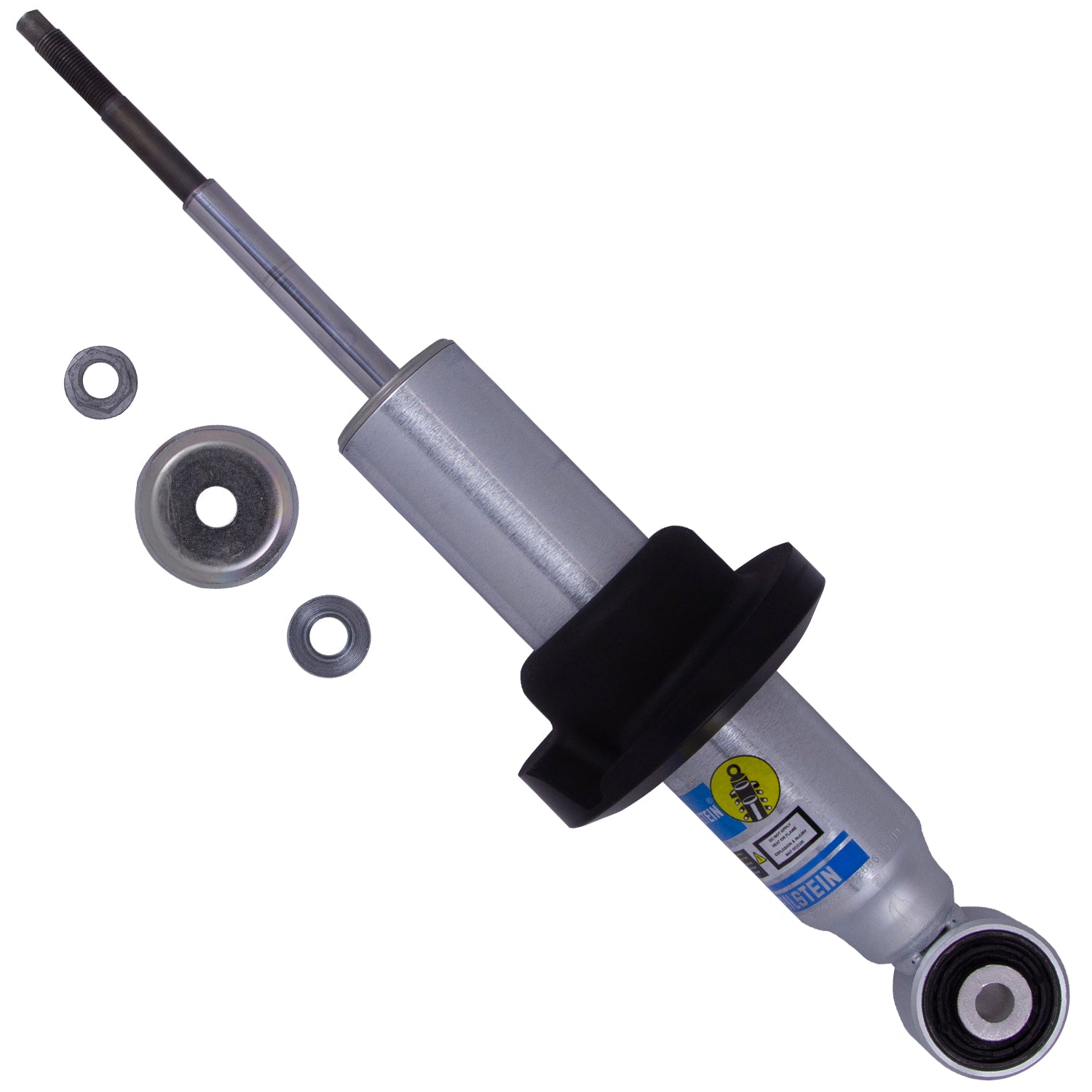

Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 2.65 OD body and 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation making them perfect for vehicles subjected to rugged roads and harsh conditions.
Characteristics include:
Adjustable Damping:Non-Adjustable
Body Design:Snap Ring Grooved Body (Coilover)
Boot Included:No
Collapsed Length (IN):14.42
Collapsed Length (MM):366.2
Extended Length (IN):18.43
Extended Length (MM):468.0
Finish:Zinc Plated
Internal Design:Monotube
Lower Mount Type:Eye 16mm
PartType:Shocks / Struts
Piston Diameter:60mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:No
Segment:Light Truck
Series:B8 6100 (Ride Height Adjustable)
Shaft Diameter:18mm
Spring Seat Included:Yes
Stroke/Travel Length (IN):4.01
Stroke/Travel Length (mm):101.9
Title:Bilstein Shock Absorbers
Upper Mount Type:Stem
Some of the interchangeable part numbers are:
Customer Video Reviews
Watch genuine customer videos showing their upgrades and honest results of similar products
Fitment Table
This product is compatible with these vehicles:
Year
Make
Model
Notes
Position
2021
Nissan
TITAN XD
Platinum Reserve
Front Lift Height: 0-2"
4WD
Front
2021
Nissan
TITAN XD
PRO-4X
Front Lift Height: 0-2"
Front
2021
Nissan
TITAN XD
S
Front Lift Height: 0-2"
4WD
Front
2021
Nissan
TITAN XD
SL
Front Lift Height: 0-2"
4WD
Front
2021
Nissan
TITAN XD
SV
Front Lift Height: 0-2"
4WD
Front
2020
Nissan
TITAN XD
Platinum Reserve
Front Lift Height: 0-2"
4WD
Front
2020
Nissan
TITAN XD
PRO-4X
Front Lift Height: 0-2"
Front
2020
Nissan
TITAN XD
S
Front Lift Height: 0-2"
4WD
Front
2020
Nissan
TITAN XD
SL
Front Lift Height: 0-2"
4WD
Front
2020
Nissan
TITAN XD
SV
Front Lift Height: 0-2"
4WD
Front
2019
Nissan
TITAN XD
Platinum Reserve
Front Lift Height: 0-2"
4WD
Front
2019
Nissan
TITAN XD
Platinum Reserve
Front Lift Height: 0-2"
5.0L
8 Cylinders
RWD
Front
2019
Nissan
TITAN XD
PRO-4X
Front Lift Height: 0-2"
Front
2019
Nissan
TITAN XD
S
Front Lift Height: 0-2"
4WD
Front
2019
Nissan
TITAN XD
S
Front Lift Height: 0-2"
5.0L
8 Cylinders
RWD
Front
2019
Nissan
TITAN XD
SL
Front Lift Height: 0-2"
4WD
Front
2019
Nissan
TITAN XD
SL
Front Lift Height: 0-2"
5.0L
8 Cylinders
RWD
Front
2019
Nissan
TITAN XD
SV
Front Lift Height: 0-2"
4WD
Front
2019
Nissan
TITAN XD
SV
Front Lift Height: 0-2"
5.0L
8 Cylinders
RWD
Front
2018
Nissan
TITAN XD
Platinum Reserve
Front Lift Height: 0-2"
4WD
Front
2018
Nissan
TITAN XD
Platinum Reserve
Front Lift Height: 0-2"
5.0L
8 Cylinders
RWD
Front
2018
Nissan
TITAN XD
PRO-4X
Front Lift Height: 0-2"
Front
2018
Nissan
TITAN XD
S
Front Lift Height: 0-2"
4WD
Front
2018
Nissan
TITAN XD
S
Front Lift Height: 0-2"
5.0L
8 Cylinders
RWD
Front
2018
Nissan
TITAN XD
SL
Front Lift Height: 0-2"
4WD
Front
2018
Nissan
TITAN XD
SL
Front Lift Height: 0-2"
5.0L
8 Cylinders
RWD
Front
2018
Nissan
TITAN XD
SV
Front Lift Height: 0-2"
4WD
Front
2018
Nissan
TITAN XD
SV
Front Lift Height: 0-2"
5.0L
8 Cylinders
RWD
Front
2017
Nissan
TITAN XD
Platinum Reserve
Front Lift Height: 0-2"
4WD
Front
2017
Nissan
TITAN XD
Platinum Reserve
Front Lift Height: 0-2"
5.0L
8 Cylinders
RWD
Front
2017
Nissan
TITAN XD
PRO-4X
Front Lift Height: 0-2"
Front
2017
Nissan
TITAN XD
S
Front Lift Height: 0-2"
4WD
Front
2017
Nissan
TITAN XD
S
Front Lift Height: 0-2"
5.0L
8 Cylinders
RWD
Front
2017
Nissan
TITAN XD
SL
Front Lift Height: 0-2"
4WD
Front
2017
Nissan
TITAN XD
SL
Front Lift Height: 0-2"
5.0L
8 Cylinders
RWD
Front
2017
Nissan
TITAN XD
SV
Front Lift Height: 0-2"
4WD
Front
2017
Nissan
TITAN XD
SV
Front Lift Height: 0-2"
5.0L
8 Cylinders
RWD
Front
2016
Nissan
TITAN XD
Platinum Reserve
Front Lift Height: 0-2"
4WD
Front
2016
Nissan
TITAN XD
Platinum Reserve
Front Lift Height: 0-2"
5.0L
8 Cylinders
RWD
Front
2016
Nissan
TITAN XD
PRO-4X
Front Lift Height: 0-2"
Front
2016
Nissan
TITAN XD
S
Front Lift Height: 0-2"
4WD
Front
2016
Nissan
TITAN XD
S
Front Lift Height: 0-2"
5.0L
8 Cylinders
RWD
Front
2016
Nissan
TITAN XD
SL
Front Lift Height: 0-2"
4WD
Front
2016
Nissan
TITAN XD
SL
Front Lift Height: 0-2"
5.0L
8 Cylinders
RWD
Front
2016
Nissan
TITAN XD
SV
Front Lift Height: 0-2"
4WD
Front
2016
Nissan
TITAN XD
SV
Front Lift Height: 0-2"
5.0L
8 Cylinders
RWD
Front
