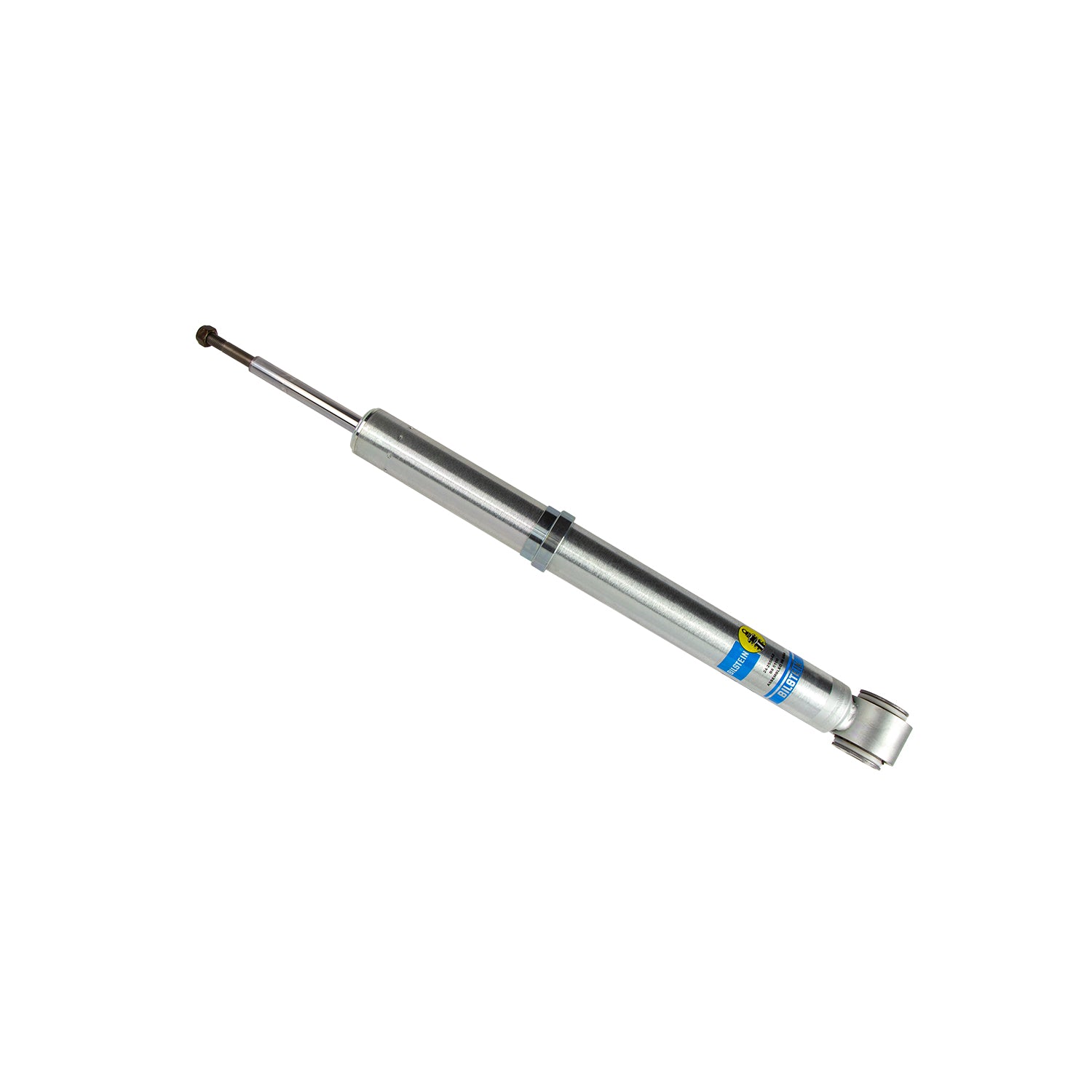

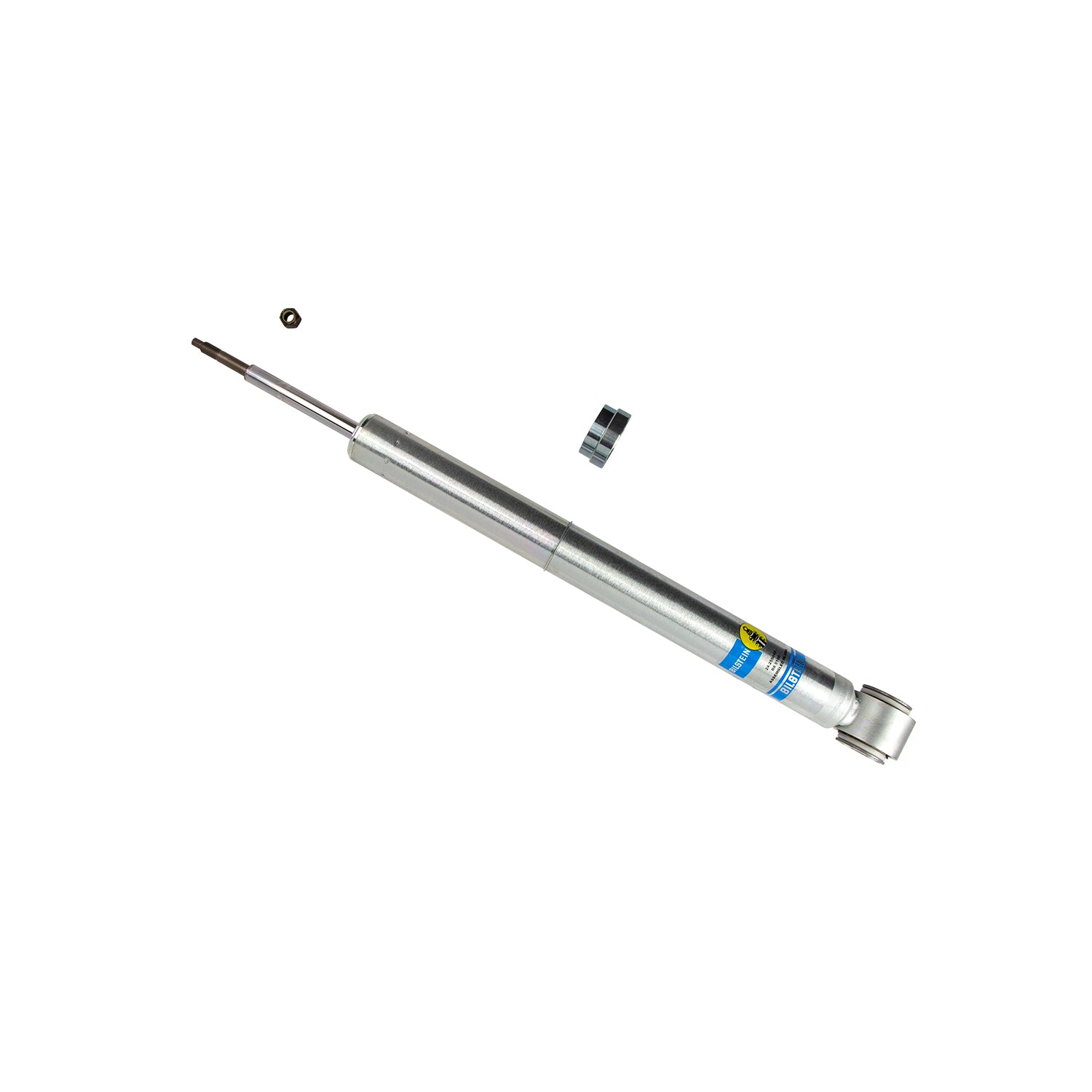

Bilstein 24-255042 B8 5100 - Suspension Shock Absorber

Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Included warranty:

This product has 2-year limited warranty.

• Warranty starts from the date of delivery.
• Proof of purchase required for all claims.
• Covers manufacturing defects only.
• Does not cover normal wear & tear.
• Does not cover cosmetic damage or rust damage.

To initiate a claim, simply send an email to support@partspioneer.ca. For more information, read our Warranty Policy.

Choose Bilstein because:

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique velocity sensitive digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality handling and comfort.

Characteristics include:

• Adjustable Damping:Non-Adjustable
• Body Design:Smooth Body (Non-coilover)
• Boot Included:No
• Collapsed Length (IN):21.93
• Collapsed Length (MM):557.0
• Extended Length (IN):26.83
• Extended Length (MM):681.5
• Finish:Zinc Plated
• Internal Design:Monotube
• Lower Mount Type:Eye 20.3mm
• PartType:Shocks / Struts
• Piston Diameter:46mm
• Prop 65 (Y/N):Y
• Prop 65 - Short Label:WARNING: Cancer &amp
• Reproductive Harm - www.P65Warnings.ca.gov
• Reservoir:No
• Segment:Light Truck
• Series:B8 5100
• Shaft Diameter:18mm
• Spring Seat Included:No
• Stroke/Travel Length (IN):4.65
• Stroke/Travel Length (mm):118.1
• Title:Bilstein Shock Absorbers
• Upper Mount Type:Stem
